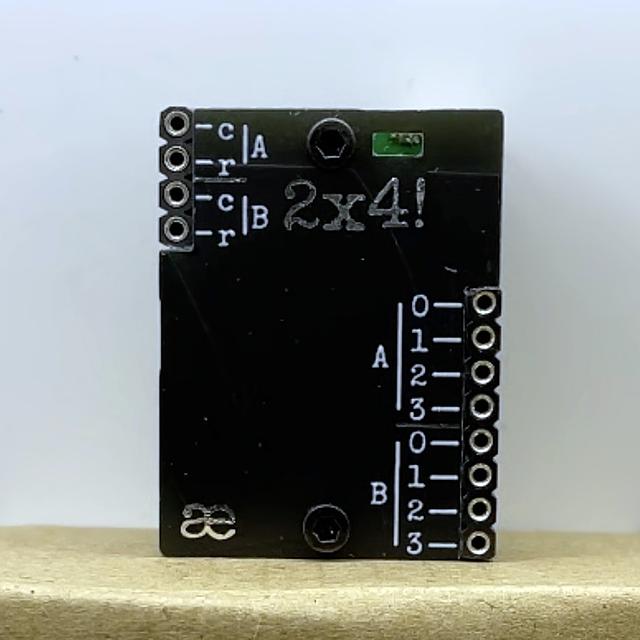

Simple µModule comprising a pair or 4 bit counters. Each counter has a clock and a reset input, triggered by positive trigger inputs.

This first version is a prototype, and the next version will have some minor improvements to the clock and reset inputs themselves… but this is reflected in the discounted price!

Inputs

• c — clock input (increments the 4 bit counter);
• r — reset (sets all outputs to '0')

Outputs

4 individual bit outputs Each clock input pulse will change the outputs in the following pattern:

- 0 0 0 0
- 0 0 0 1
- 0 0 1 0
- 0 0 1 1
- 0 1 0 0
- 0 1 0 1
- 0 1 1 0
- 0 1 1 1
- 1 0 0 0
- 1 0 0 1
- 1 0 1 0
- 1 0 1 1
- 1 1 0 0
- 1 1 0 1
- 1 1 1 0
- 1 1 1 1
