6 Slot Green RCBus Backplane
Sold by Dino Boards
$23.99
No tax for United States [change]

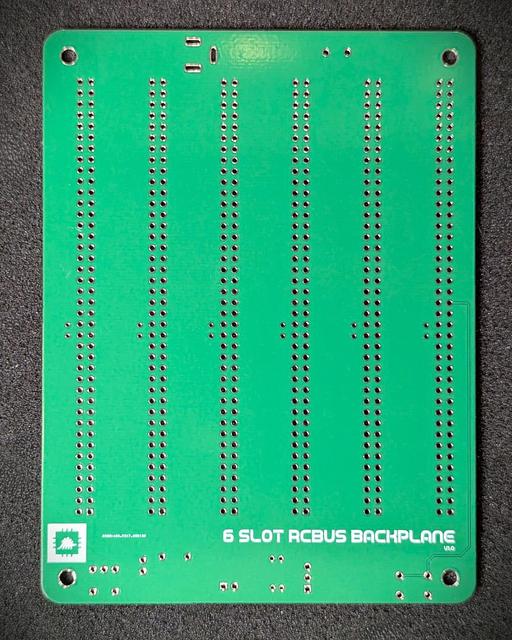

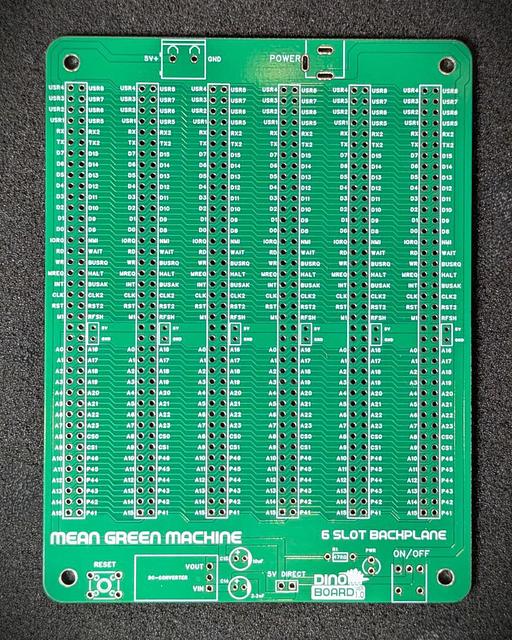

A standard 80-way RCBus/RC2014 compatible backplane.
Suitable for the Green Machine Series of kits.

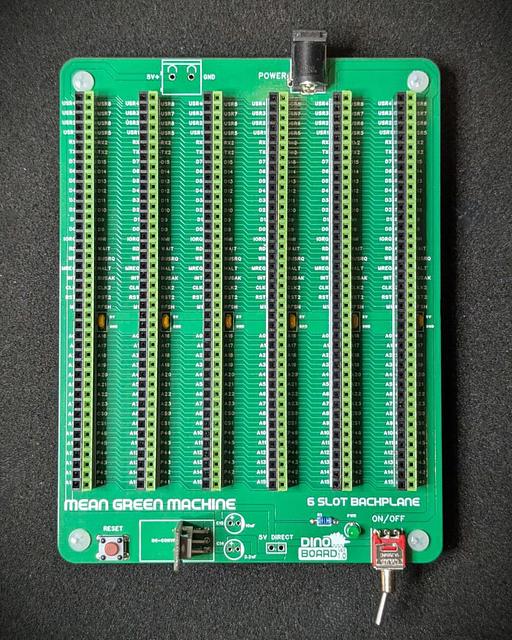

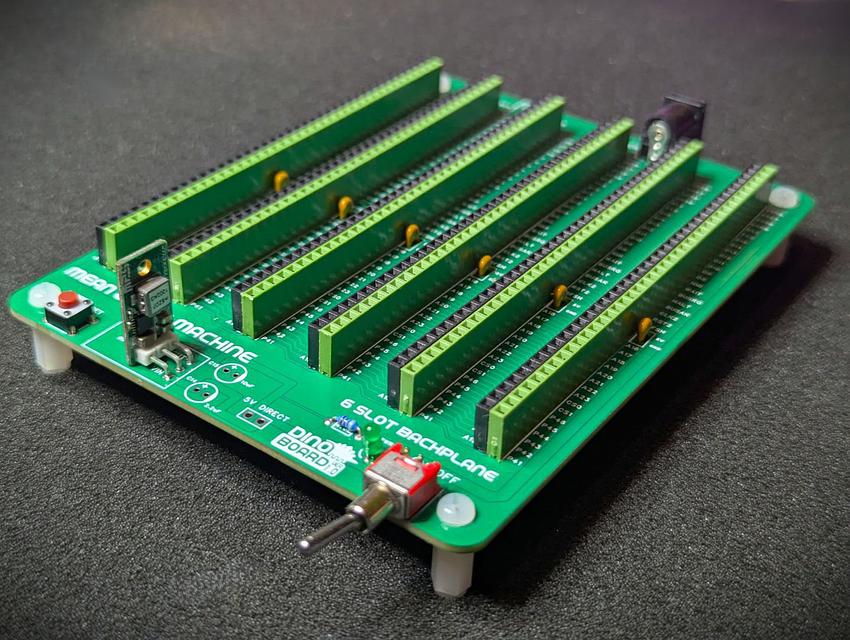

Key features
- Onboard 5V DC converter
- Onboard switch and power-on LED
- Onboard system reset switch
- Single ground plane for maximum signal integrity
- Optional bypass support for direct 5V powering
- Screw terminal for external 5V output
- RCBus and RC2014 compatibility
What is the Green Machine Series of Retro Kits
The Green Machine Series of kits are designed around the RCBus/RC2014 bus, powered by an eZ80 CPU (as apposed to the Z80 CPU), and are broadly compatible with many RC2014 and RCBus kits and CP/M and RomWBW software stacks.
For more information of the eZ80 CPU, see the eZ80 CPU kit.
FAQ
Can I use other backplanes - do I have to use this one for an eZ80 build?
You can use any RCBus compatible backplane that supports all 80 bus lines. You can even use non-green ones! Just make sure it has the full 80 lanes (2x40 pin headers)
Bill of Materials

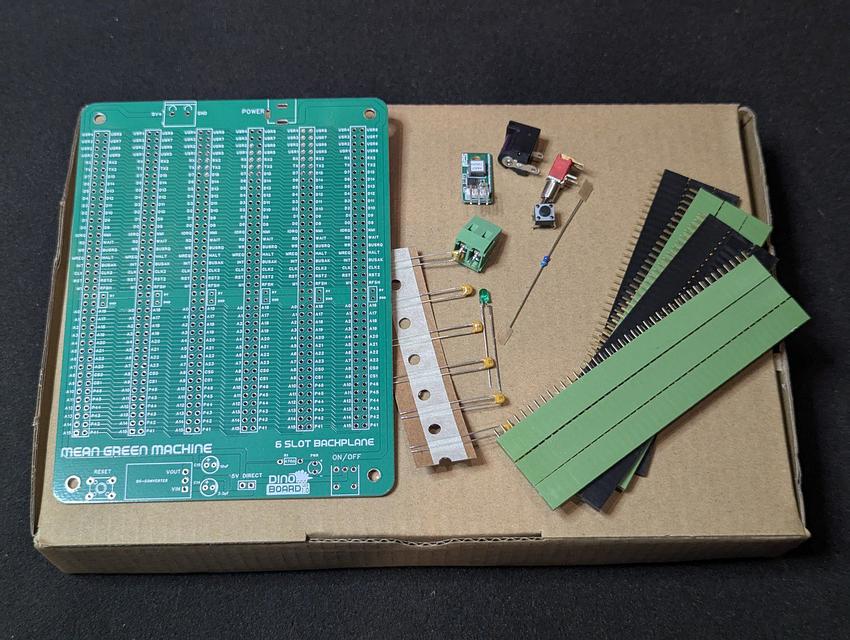

The following items will be included in your kit.
| Count | Name |
|---|---|
| 4 | 0.1uF |
| 12 | 1x40 header socket (green & black) |
| 1 | 3mm GREEN LED |
| 1 | 1 470 Ω |
| 1 | DC Barrel Connector |
| 1 | Tactile Switch |
| 1 | Power Terminal Block (2POS) |
| 1 | SPDT Toggle Switch |
| 1 | Optional Compatible DC Converter 12V to 5V (2amp) |
| 1 | 2 Layer PCB |
Disclaimer
Please note that this is a kit, produced by a non-expert (me) for hackers, DIYers' and retro lovers, to tinker with. Please exercise caution and follow good safety practices. You will be working with sharp knives, a hot soldering iron, and small metal components. Be mindful of the risks involved in the build process. I will do my best to answer any questions you may have.
This kit is provided as-is, with no guarantees or warranties. By assembling and using this kit, you acknowledge that you do so at your own risk.
