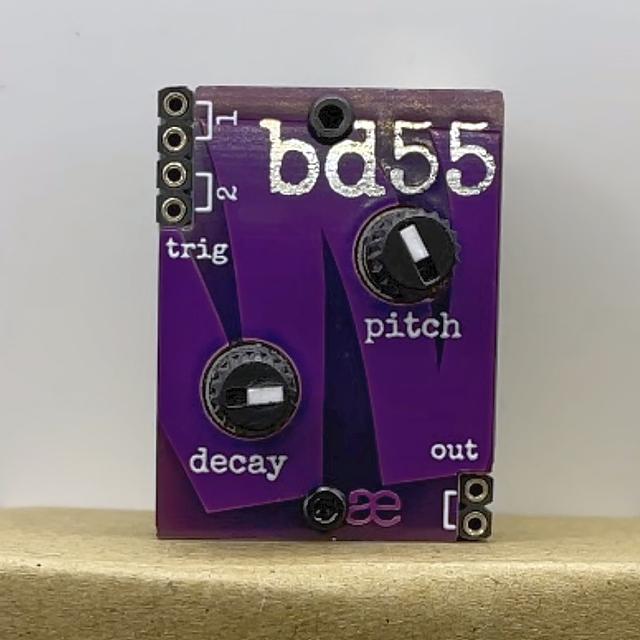

Here’s a slightly updated version of the bd55 module, with a slightly less aggressive sound (like the redesigned rs55, it’s more like the original DR55), but still capable of self-oscillation, it’s slightly more controllable. Oh and it’s a lot more purple…

The module is a clone of the famous Bass Drum voice from the Boss DR-55. The most popular mods (decay and pitch) have been incorporated into the design for added fun…

PLEASE NOTE THAT THIS MODULE REQUIRES THE PURCHASE OF A MICRO-MODULE UBASE MODULE FROM TANGIBLE WAVES (HERE)

Inputs

• Trigger 1 & 2: A trigger pulse at input 1 or 2 will cause the bd55 to do its thing; if two pulses arrive simultaneously then there is an accented effect which can be quite effective!

  Duplication of trigger inputs are intended to be used as local ‘multiples’ (for example to allow the same trigger signal to be relayed to other drum voice modules).

  Tested with TRIQ164; Euclid Grid; rbss

Outputs

• Audio output: The same audio output signal is present at both outputs, allowing it to be sent to multiple destinations.
