The DIN-rail mounting ESP32-based device

ESP32-Box

Sold by TinyDevices store

$40.06

No tax for United States [change]
Stock available: 25
ESP32
Home automation
Power management

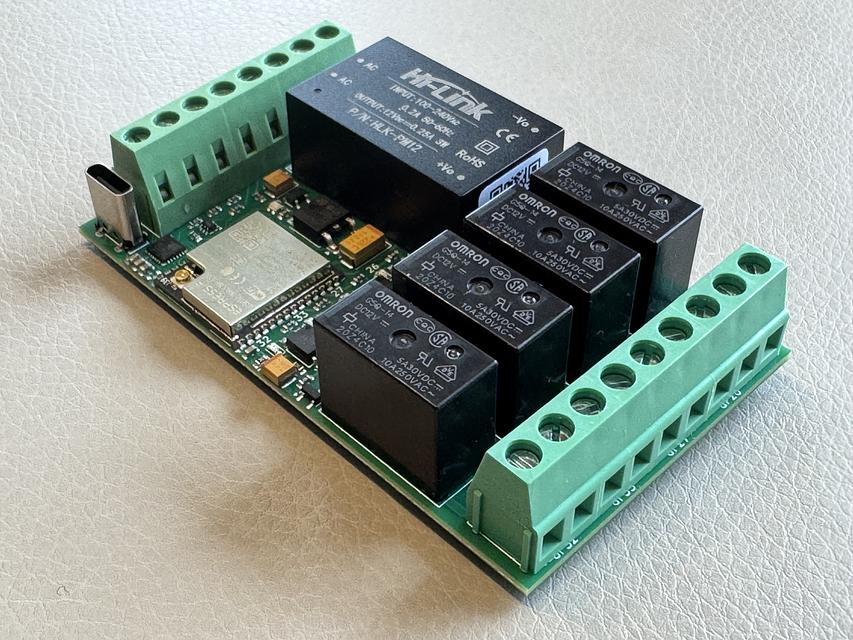

The device designed around regular ESP32-module and fitted inside high quality DIN-rail mounting enclosure. The board designed to be compact as much as possible. Thus the device itself takes 3 DIN-rail positions only.

Main features:

  • The ESP32-BOX has internal AC/DC-converter. Thus it could be powered from the regular AC line (i.e. wall socket) 100-240V (no external AC/DC adapters needed);
  • The ESP32-BOX provides 4 optically isolated Relay outputs (up to 10A/250V or 5A/30V each). Each relay output has its own LED-indicator.
  • The ESP32-BOX provides 4 additional GPIOs. Two of them could be used as I2C-line.
  • All the inputs and outputs of the ESP32-BOX are implemented as reliable screw terminals.
  • The ESP32-BOX has onboard RGB-led, which could be used for multiple status indications on your taste.
  • The top part of the enclosure is transparent. So the LEDs could be easily observed from the outside.

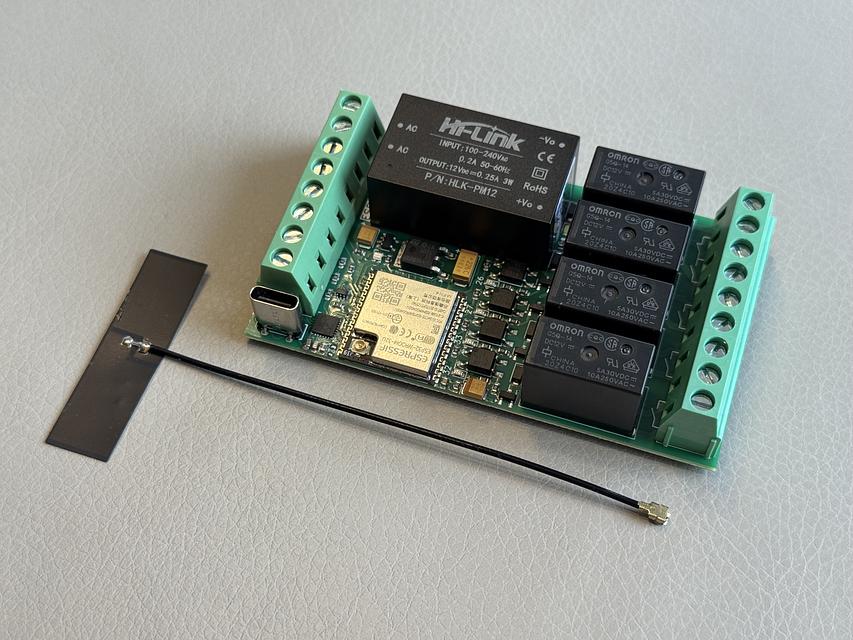

  • The ESP32-BOX equipped with powerful external antenna, which is located inside the enclosure. Thanks to uFL/IPEX1 header any other suitable antenna could be used instead.
  • The ESP32-BOX could be programmed with the USB Type-C cable (no buttons required).
  • Write your sketches using: Arduino, CircuitPython, MicroPython or ESP-IDF.
  • Finally, ESP32-BOX is ESPHome-compatible!

Scope of delivery:

  • ESP32-based board (1 pcs.)
  • Enclosure (high quality ABS-plastic - 1 pcs.)
  • +5dBi external antenna (1 pcs.)

Links to code and documentation

Documentation (github.com)

Code (github.com)

Schematics (github.com)

Shipping policy

The product will be shipped within 2 working days.

Usually it takes just one working day to process a new order.

Purchased product will be packed carefully and will be shipped with Lithuanian post or DPD over the EU.

The US buyers could expect for FedEx shipments!

Shipping costs and possible customs and import taxes are not included.
