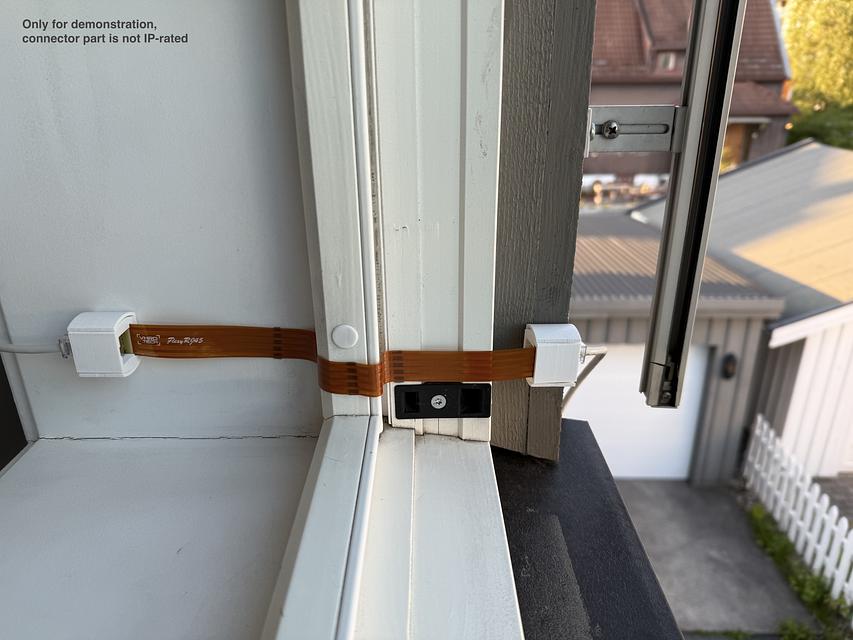

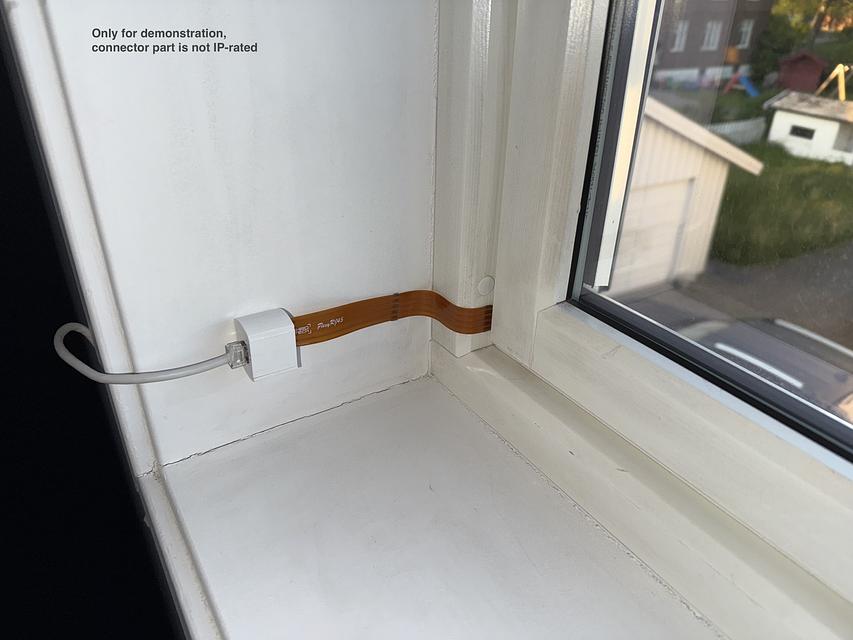

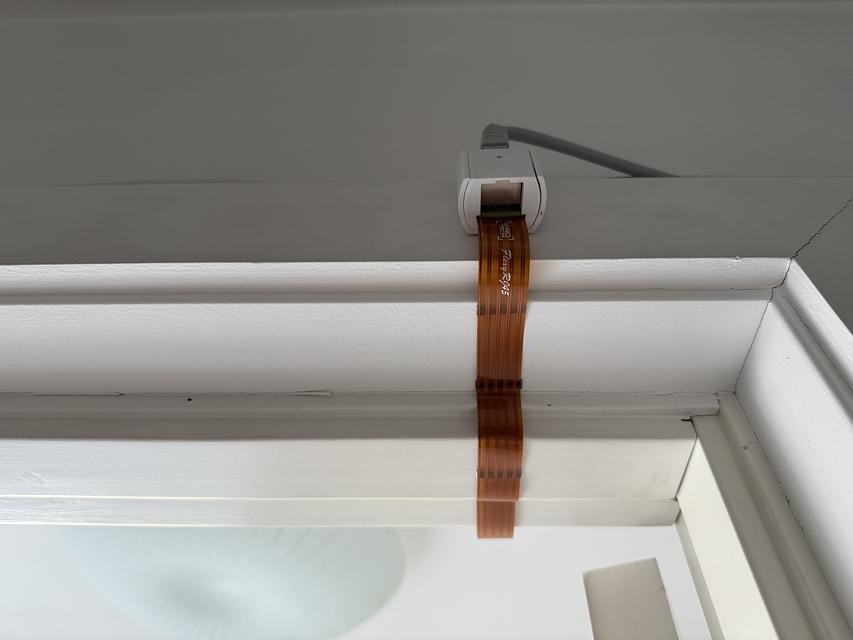

This flex adapter lets you route Ethernet cables effortlessly through door frames without drilling or damage. Perfect for home, office, or temporary setups. It ensures more reliable, high-speed connectivity than wireless options.

Features

• Flex length: 268mm (assembled)
• Tested at 1Gbps speeds and realistic cable lengths
• Symmetric case - can be mounted upside down

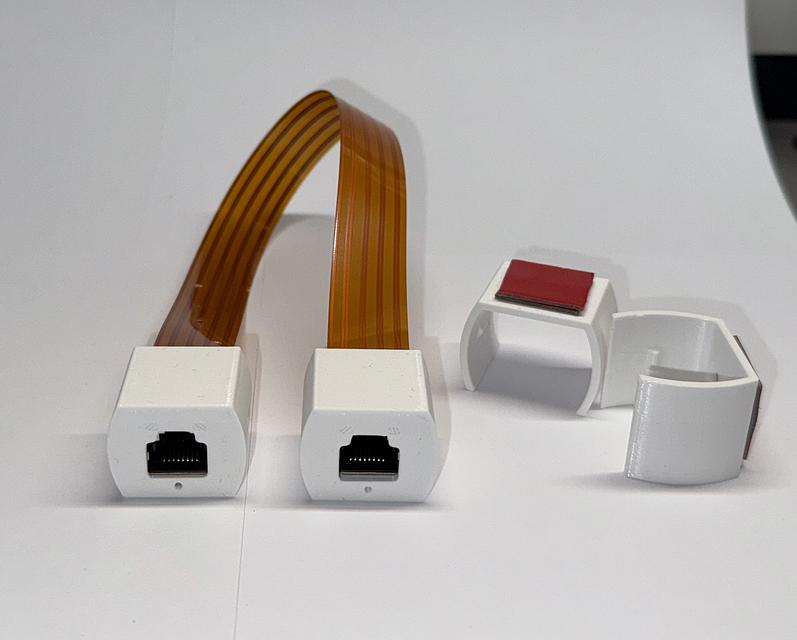

• Easy mounting - attach U shaped holder, then snap the case into it

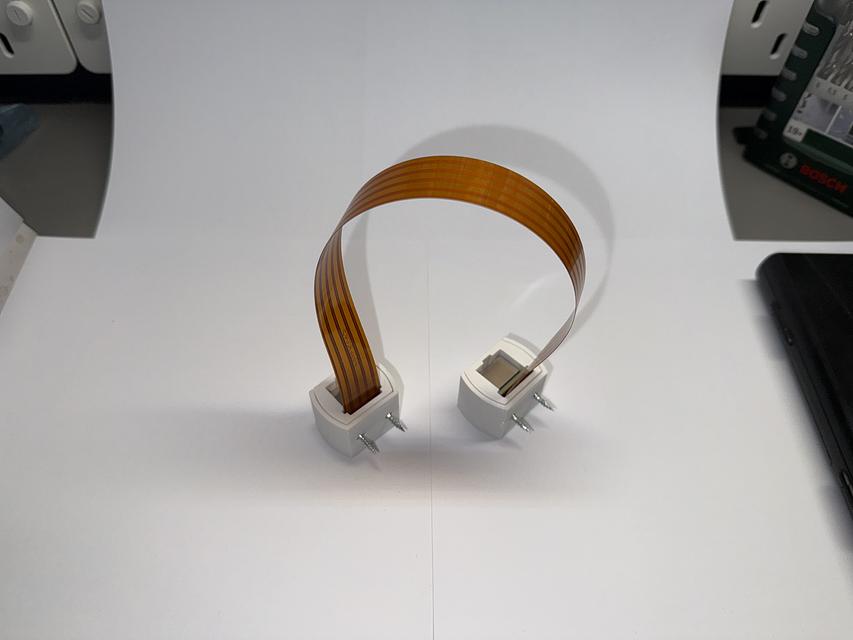

• Mount with 3M tape or screws (both included)

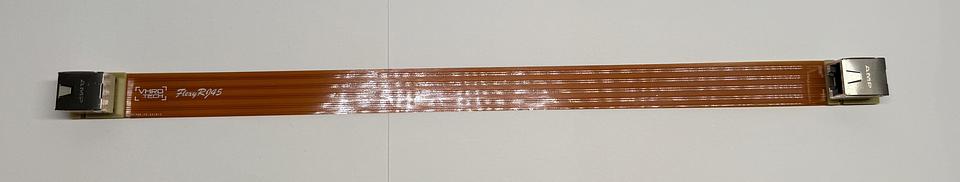

• Flex length: 296mm (board only)

Suggested installation procedure
Both U shaped holders come with two sets of 3M tape on them, peel off red protective film from the top one, that whay you will only need to do it once. Unglue the top tape and cut it into 3 or 4 pieces, that gives you 6-8 pieces of tape for securing the flex around corners.

• Detach U shape plastic holders and figure out where the connectors should be on your door frame, that way you can slide them around to find the best place without tape sticking.
• To make the flex go straight, apply some masking tape to a door frame as a guide.
• For a nicer flex routing apply cutted tape pieces near each corner of a door frame, or howewher it looks right in your particular situation.
• Glue or screw in the first U holder, stick the flex to tape pieces and finally secure the second U holder on the other side.
• Make sure that cable plugs are fully inserted, with the connectors pointing away at a ceiling it could be hard to see if they are.

Products in stock to be shipped with 3 business days.

Products to be assembled and shipped within 2 business weeks (parts on hand).

Products to be assembled and shipped within 4 business weeks (need to order parts).
