ESP32 WLED Wi-Fi LED Controller with Relay and Microphone – GL-C-615WL

The GL-C-615WL is a compact and powerful ESP32-based WLED controller designed for digital RGB/RGBW LED strips. With built-in Wi-Fi, it offers smooth and responsive lighting control through the WLED interface, making it ideal for home lighting, DIY builds, PC setups, and creative installations.

This model includes a built-in relay, 20A fuse, and digital microphone (I²S) for sound-reactive effects. The USB-C port allows easy power or firmware updates, and the dual-output design lets you control two LED strips independently using the WLED app.

Features

• Dual LED outputs (GPIO16 & GPIO2) for two independent strips

• Wi-Fi connectivity for fast and wireless control

• Built-in relay and replaceable 20A fuse for safe operation

• Integrated digital microphone for sound-reactive lighting

• USB-C port (5V / 3A) for power or programming

• Supports 5–24V DC input, up to 15A total output current

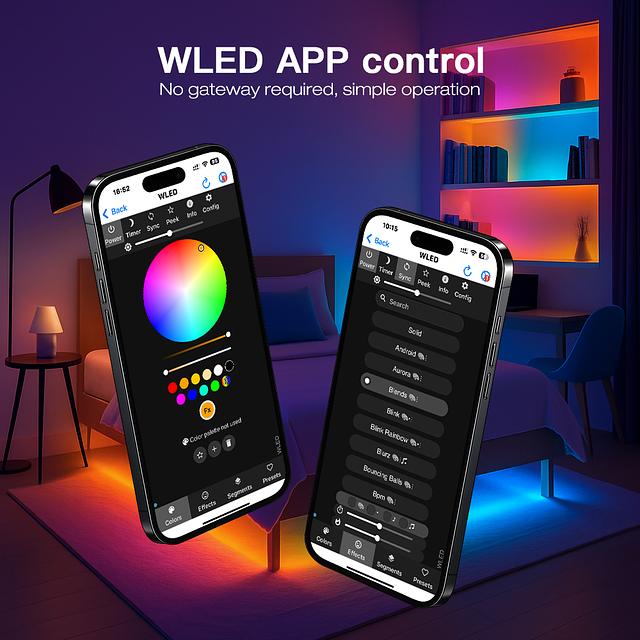

• Fully compatible with the WLED App (Android / iOS)

• Simple Wi-Fi setup – no coding required


Applications

Home and ambient lighting, PC builds, DIY projects, vehicles, and smart home setups using WLED, Home Assistant, or MQTT.

Supported LED Types

These controllers are designed for digital/addressable LED strips, meaning each LED can be individually controlled through a data signal.
They are fully compatible with the following LED chipsets:

• WS2812B
• WS2815
• WS2811 / WS2811F
• SK6812
• WS2814A
• SM16703 / SM16703SP3
• FL19038
• FW1935
• UCS2903B
• And other 3-wire digital LED strips supported by WLED

⚠️ Not compatible with analog RGB/RGBW LED strips (e.g., 12V/24V common-anode strips), since those require PWM dimming per color channel rather than digital data control.

Package includes

• 1× GL-C-615WL LED Controller

• 1× Spare 5A fuse

• 1× User manual
