ESP32 WLED Ethernet + Wi-Fi LED Controller with Relay and Microphone – GL-C-616WL

The GL-C-616WL is an advanced ESP32-based WLED controller featuring both Ethernet and Wi-Fi connectivity for ultra-stable, low-latency control of digital RGB/RGBW LED strips. Perfect for makers, lighting enthusiasts, and smart home projects.

This model includes a built-in relay, 20A fuse, and digital microphone (I²S) for music-reactive lighting effects, plus a USB-C port for easy power or firmware updates. The dual-output design allows you to control two LED strips independently with smooth and accurate effects through the WLED app.

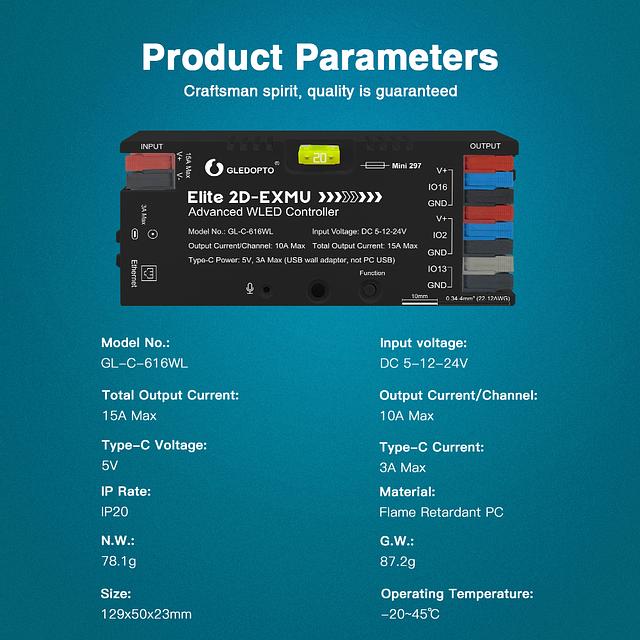

Features

• Dual LED outputs (GPIO16 & GPIO2) for two independent strips

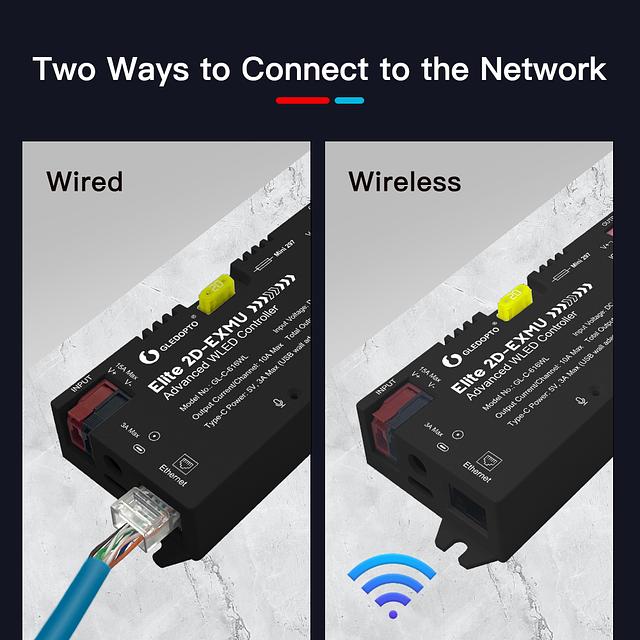

• Ethernet + Wi-Fi connectivity for flexible, reliable control

• Built-in relay and replaceable 20A fuse for safe operation

• Integrated digital microphone for sound-reactive lighting

• USB-C port (5V / 3A) for power or programming

• Supports 5–24V DC input, up to 15A total output current

• Fully compatible with the WLED App (Android / iOS)

• Easy setup via Ethernet or Wi-Fi – no coding required


Applications

Home and ambient lighting, PC builds, DIY projects, vehicles, and smart home setups using WLED, Home Assistant, or MQTT.

Supported LED Types

These controllers are designed for digital/addressable LED strips, meaning each LED can be individually controlled through a data signal.
They are fully compatible with the following LED chipsets:

• WS2812B
• WS2815
• WS2811 / WS2811F
• SK6812
• WS2814A
• SM16703 / SM16703SP3
• FL19038
• FW1935
• UCS2903B
• And other 3-wire digital LED strips supported by WLED

⚠️ Not compatible with analog RGB/RGBW LED strips (e.g., 12V/24V common-anode strips), since those require PWM dimming per color channel rather than digital data control.

Package includes

• 1× GL-C-616WL LED Controller

• 1× Spare 5A fuse

• 1× User manual
