The easy way to connect all your I²C devices!
The I²C Hub expands a single I²C bus to up to ten connectors, making it particularly easy to connect multiple sensors, displays, and other I²C modules.
Why did you make it?
To make it as easy as possible to connect and test multiple I²C devices on the same bus, and as a handy accessory for the I²C Doctor when more connectors of the same type are needed.
What makes it special?
Unlike most I²C hubs, it provides multiple connector types on a single PCB. It also features a VDD status LED to indicate whether power is supplied, and integrated 4.7 kΩ pullup resistors that can be enabled or disabled as needed via a 2-way DIP switch. This is especially useful when no pullup resistors are available on the I²C bus yet.
Specifications:
- 4x GROVE/STEMMA connectors
- 4x QT/Qwiic connectors
- 2x 2.54mm pin headers (male & female)
- VDD status LED (green)
- Switchable 4.7 kΩ pullup resistors via DIP switch
- Compact design: 40 × 25 × 12 mm
- Weight: 6g
- 4x 2mm mounting holes, each 3mm from the edge
Contents:
- I²C Hub
Links to code and documentation
No additional links provided for this product.
Shipping policy
Please note that additional import costs may apply to deliveries outside of Switzerland.
Here are some extras that might be useful for your project!
The seller
Welcome to HALENG. We are an engineering studio based in Switzerland, dedicated to building the tools we always wished we had on our own testbenches. 🇨🇭

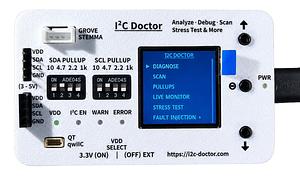

As developers, we know that troubleshooting interfaces like I²C can waste hours of valuable time. That’s why we design smart, reliable, and production-ready hardware companions like the I²C Doctor to help you analyze, debug, and stress-test your projects in seconds.
