LCD replacement for TRS-80 PC-1 and Sharp PC-1211 pocket computers

LCD replacement for TRS-80 PC-1 / Sharp PC-1211

Sold by The Half-Baked Maker

$20.00

No tax for United States [change]
Stock available: 388
Displays
SHARE

What is it?

This is a pin-for-pin compatible nearly exact replacement for the LCD module in the Radio Shack TRS-80 PC-1 (catalog number 26-3501) or Sharp PC-1211 pocket computer released in 1980.

Why did you make it?

Many PC-1 and PC-1211 pocket computers suffer from LCD degradation to the point where they are no longer useful. Apparently the seal around the LCD was of poor quality, and over the years moisture gets in and ruins the liquid crystal. The result is a display ranging from a few splotches to complete failure.

LCD showing complete degradation

I decided that it was important to bring all these dead PC-1 and PC-1211 computers back to life by reverse-engineering the LCD and remanufacturing them.

What makes it special?

These LCDs were custom manufactured by Sharp for the PC-1211. Radio Shack had a rebranding agreement with Sharp, and named the computer the TRS-80 PC-1. Replacement LCDs were never available, and finding a working LCD is problematic, given the systematic failure of the seal.

I tried as much as possible to make the fonts and positions used for the indicators as identical to the original as possible. The color of the glass is different -- green rather than yellowish-brown.

Original LCD Replacement LCD

Instructions for replacement

I've made a video showing how to replace one of these LCDs. There are a few crucial things you have to be aware of:

  • Be sure to remove the plastic protective sheet on the top before installation.
  • After removing the bezel+LCD assembly from the original computer, you'll need to soak the assembly in acetone for 2 to 3 hours to get the old LCD unstuck from the bezel. Alternatively, I've heard about successes by putting the assembly on a hotplate set to 100C for about three minutes -- be very careful that you don't burn yourself!
  • Wipe the contacts on the new LCD and clean the elastomeric strips from your existing computer with isopropyl alcohol -- preferably the 99.9% purity kind.
  • Because the voltage thresholds differ between old and new LCDs, you will need to increase the display contrast resistance to its maximum. Unfortunately, the manufacturers glued the wiper down so it can't be moved without breaking it. That's ok -- go ahead and break the wiper off! After all, you won't be needing it anymore. The video shows how.
  • Replacing the LCD will not guarantee a working computer! There could be other faults.
  • Getting the positioning right is crucial. The video shows how to do this easily.

Links to code and documentation

No additional links provided for this product.

Product HS Code: 853120

Shipping policy

I ship via the United States Postal Service, every Monday (US Pacific time) except on USPS holidays, when I ship on the next open day. US destinations usually take a few days after that, EU/JP about 2 weeks, and South and Central American destinations can take up to 6 weeks.

I CANNOT SHIP TO THE UK. Too many packages to the UK have been tracked as ENTERING THE UK, but after that the package disappears. Because of the unusually low rate of successful delivery, I no longer ship to the UK. You can find a parcel forwarder in the US. They will give you a US address to ship to, and then they will send your package from there to you using a reliable mail service.

I CANNOT SHIP TO BRAZIL. Too many packages to Brazil have been tracked as ENTERING BRAZIL, but after that the package disappears. Because of the unusually low rate of successful delivery, I no longer ship to Brazil. You can find a parcel forwarder in the US. They will give you a US address to ship to, and then they will send your package from there to you using a reliable mail service.

Here are some extras that might be useful for your project!

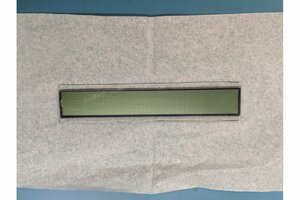

LCD for a different pocket computer

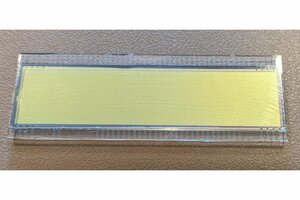

LCD for a different pocket computer

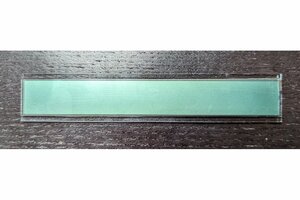

LCD for a different pocket computer

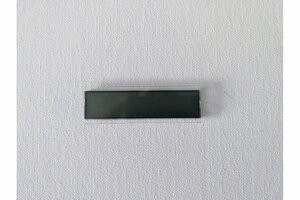

LCD for a different pocket computer
