MIDI Serial Interface (5v) (with Thru & LED indicators)
MIDI Serial Interface (with Thru & LED indicators)
Sold by Data Point Ltd
$13.77
No tax for United States [change]
Stock available: 15
MIDI Serial Interface (with Thru & LED indicators)

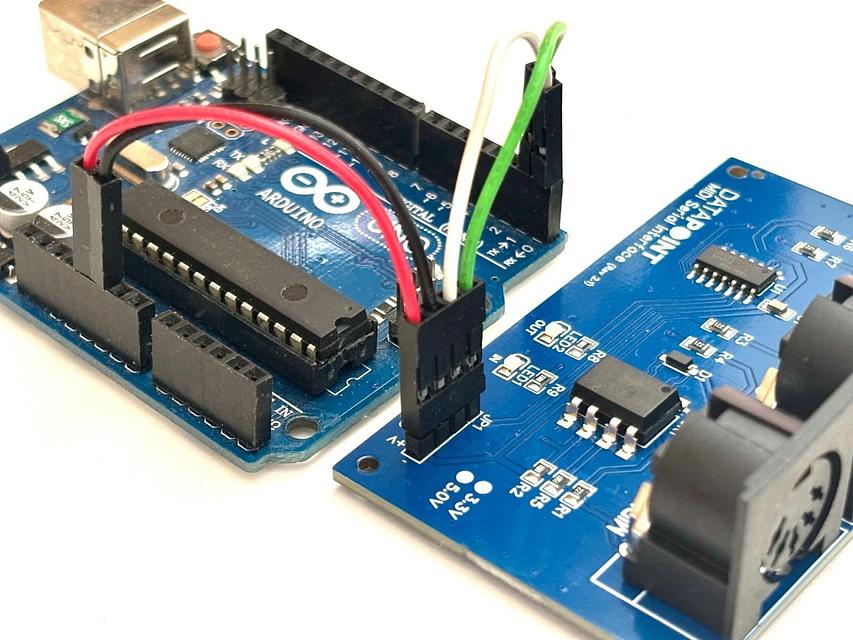

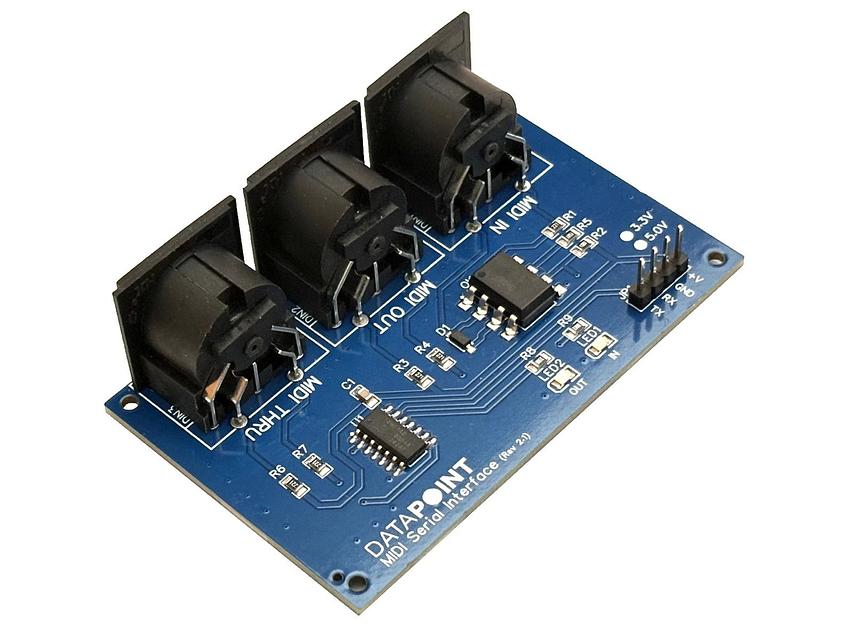

Connect your MIDI instruments or create your own Arduino instrument with this MIDI Serial Interface board. Fully Assembled.

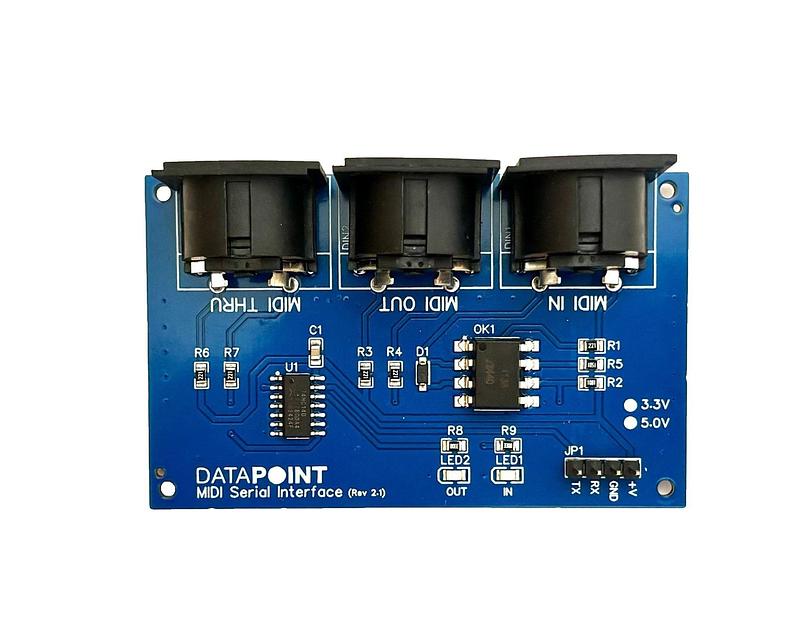

Specifications
- 6N138 Optocoupler
- 74HC14 Hex Inverter
- MIDI In DIN
- MIDI Out DIN
- MIDI Thru DIN

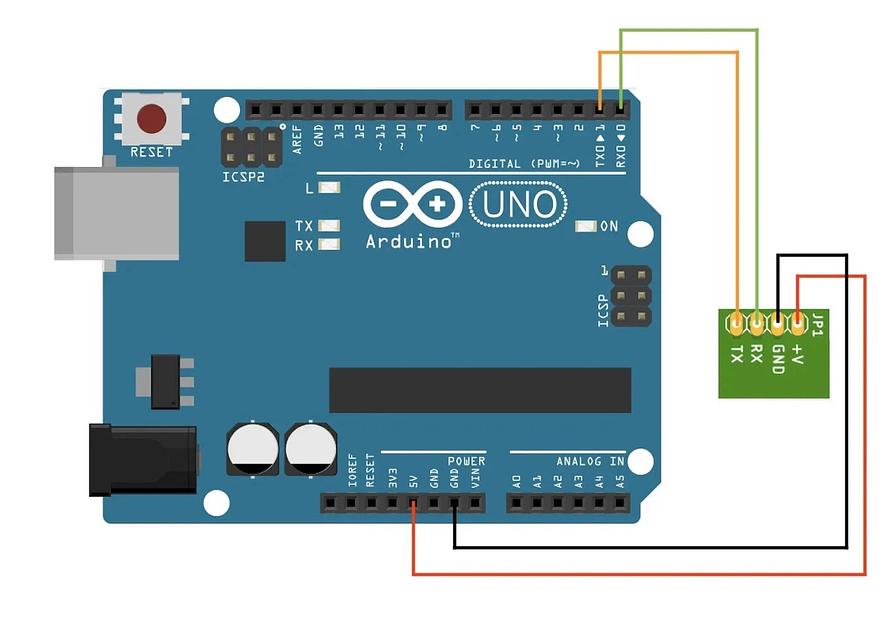

- Serial: GND, +3.3v, TX, RX
Measurements
- 46mm x 74mm x 23mm
- 4 x 2mm mount holes
Example Arduino sketches for use with this board are available on GitHub: github.com/jamesleesaunders/arduino_midi
Links to code and documentation
