A hand-solderable SMD/TH module w/ RP2350B MCU+16MB FLASH, LDO, LiPo charger, reset and boot btns. Breaks out all GPIO+USB+SWD+BOOTSEL+RST

RP2350 Stamp XL

Sold by Solder Party

$11.00

No tax for United States [change]
This item is currently out of stock. More stock will be available in early December.
Sign up to get notified when this product is back in stock.
Application
Raspberry Pi
Prototyping
SHARE

Summary

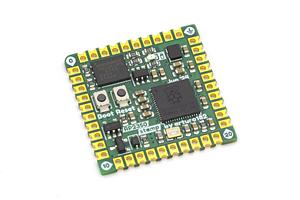

The RP2350 Stamp XL is a hand-solderable SMD/TH module that integrates the Raspberry Pi RP2350B MCU with 16MB of FLASH, an LDO, LiPo charge management (including a charge LED), a reset button, and a bootsel button. It breaks out all the 48 GPIOs as well as USB, SWD, BOOTSEL, RST, and the voltage pins. The Stamp also has a footprint for a second QSPI FLASH/PSRAM, as well as footprints for SWD and UART JST connectors, compatible with the Raspberry Pi Debug Probe.

Details

The Stamp XL was created to allow you to use the Raspberry Pi RP2350B in your designs without having to solder small-pitch QFN chips or worry about lots of external circuitry.

All you need to get you started is a 5V supply or a LiPo battery. The Stamp will take care of the charging and switching the power sources.

The castellated edges with 2mm pitch can be hand-soldered directly to a Carrier board, used with pin headers for more flexibility, or connected without soldering using FlexyPins, which are spring connectors designed for modules with castellated edges. You can find footprints for many PCB programs including KiCad, Eagle CAD, and EasyEDA here.

Dimensions

Dimensions

At only 1 by 1¾ inch, the Stamp XL packs a lot of features:

  • 16MB of FLASH
  • 500mA 3.3V LDO
  • All 48 GPIOs broken out
  • A footprint for a second QSPI FLASH/PSRAM
  • Footprints for SWD and UART JST connectors, pin-compatible with the Raspberry Pi Debug Probe
  • LiPo supply and charging circuit (with charging LED)
  • USB broken out
  • SWD broken out
  • Reset Button
  • Bootsel Button
  • 12MHz crystal

and of course, everything that comes with the Raspberry Pi RP2350 itself:

  • Dual core ARM Cortex-M33 or Hazard3 @ 150MHz
  • 520kB SRAM
  • 2 UARTs
  • 2 SPIs
  • 2 I2Cs
  • 24 PWM channels
  • 12 PIO state machines
  • 1 HSTX peripheral
  • USB with Host and Device support

The RP2350 comes with a pre-programmed ROM UF2 Bootloader, by pulling the BOOTSEL pin low and resetting, or by double-pressing the RESET button (if the FW supports it), you can upload new firmware using the USB disk drive.

Pinout

Pinout

What you get

  • An RP2350 Stamp XL module
  • A pinout and functionality reference sheet

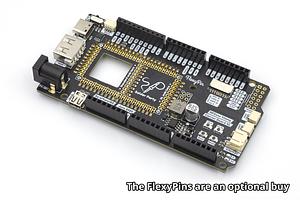

  • (Optionally) The RP2xxx Stamp Carrier XL board
  • (Optionally) A set of 2mm pin headers
  • (Optionally) A bag of FlexyPins

RP2350 Stamp XL

Links to code and documentation

Documentation (docs.solder.party)

Code (github.com)

Design Files (github.com)

Schematics (github.com)

Certified Open Source Hardware - OSHW SE000026
