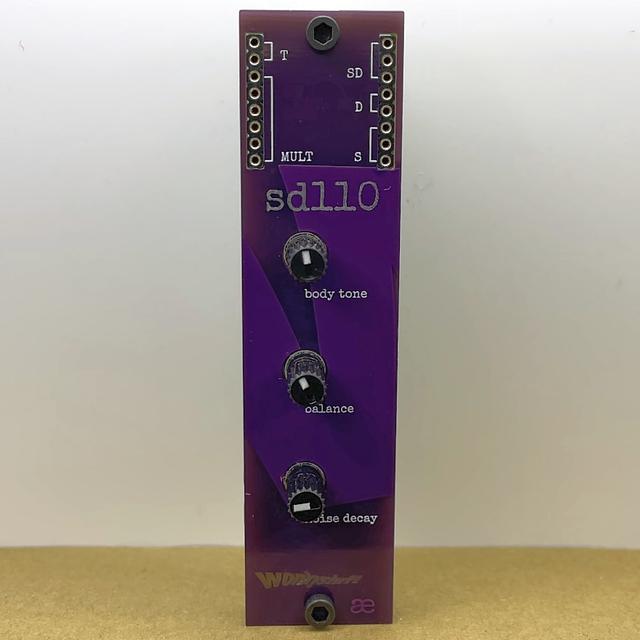

Modelled after the SD circuit of the dr110, with a few modifications to make it a bit more flexible… the module has three audio outputs consisting of the mixed Snare and Drum signals, along with the separate snare and drum parts for further post processing.

This first version needed some amending due to a PCB layout mistake, so is cheaper than the 'production' run but this will be rectified in subsequent (full price) editions.

Input

• t — trigger input

Outputs

• SD — Snare Drum mixed signals (mix controlled by 'balance' control)
• D — Drum tone
• S — Snare noise

Controls

• Drum tone — pitch/decay of the drum part of the voice;
• Balance — Mix of drum tone and the snare noise
• Snare decay — The 'tightness' of the snare noise burst
