The converter is designed to service and debug operations on UAVs. It respects the Pixhawk DS-009 connector standard.

TFUSBSERIAL01 - Drone USB-C to serial converter

Sold by ThunderFly

$99.66

No tax for United States [change]
Stock available: 10
Drones
Robotics
RS232/RS485

Simplify your UAV maintenance with the TFUSBSERIAL01, the essential tool for debugging and servicing UAV systems. This USB-C to serial converter is fully compliant with the Pixhawk DS-009 connector standard, ensuring seamless integration with your avionics equipment.

Key Features:

  • Dual Connection Flexibility: Easily connect to both peripheral or FMUs without the need for special RX/TX crossover cables.
  • Simultaneous Communication: Capable of sniffing serial communication on telemetry links, utilizing both connectors at once.
  • Advanced Safety Features: Includes excess current protection for USB power and a reverse diode to prevent accidental power flow from FMU to USB.
  • Hardware Flow Control Support: Ensures reliable data transfer, crucial for critical debugging tasks.

Easy Usage

Connect the FMU or peripheral device to the corresponding Pixhawk connector and utilize standard serial terminal tools for effective communication.

Effortless Self-Testing

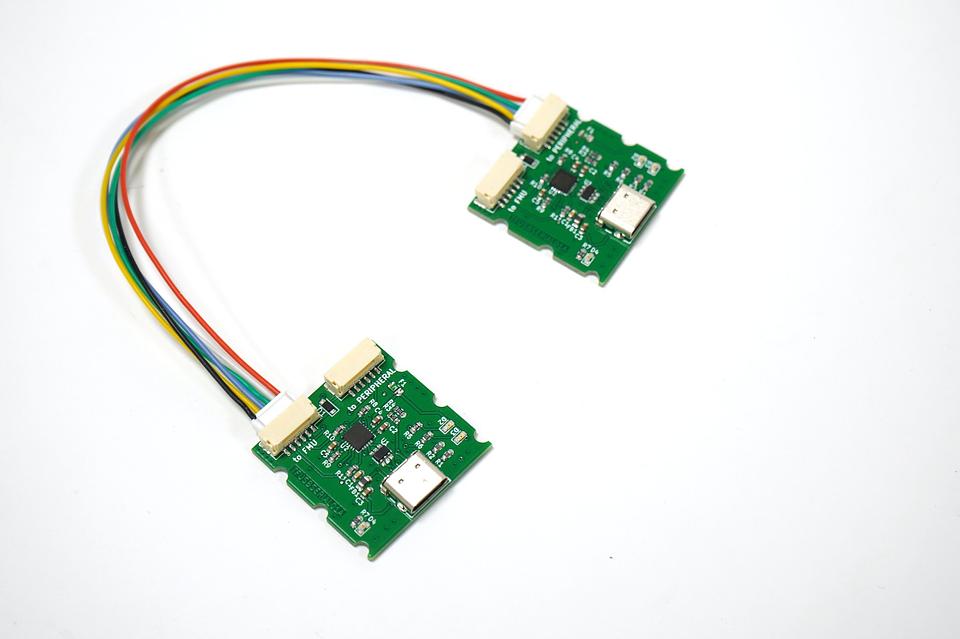

Test cable functionality by connecting the "to FMU" and "to Peripheral" connectors, simulating a local echo for straightforward self-diagnostics.

The package includes

  • TFUSBSERIAL01A protected by the heat-shrinking tube
  • 15cm UART/TELEM/SERIAL cable with JST-GH connectors. Color-coded by ThunderFly color scheme.

Links to code and documentation

Documentation (docs.thunderfly.cz)

Design Files (github.com)
