Introducing the TinyC6[D] - The Tiny Mighty ESP32-C6 development board
![TinyC6[D] features](https://unexpectedmaker.com/images/features/main_features_tinyc6d.webp)
Meet TinyC6[D]

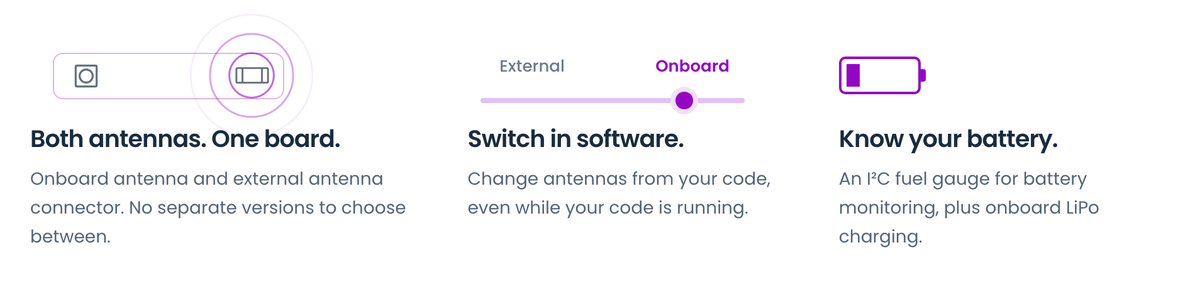

TinyC6[D] is the TinyC6 you know, re-designed with the Series[D] upgrades: an onboard antenna and a u.FL connector on the same board, switchable from your code, an I²C fuel gauge for accurate battery monitoring & a new ultra low power 1010 Neopixel RGB LED. It keeps its TinyPICO-compatible footprint.
![Series[D] features: Both antennas. One board. · Switch in software. · Know your battery.](https://unexpectedmaker.com/images/product-content/series-d-features-tinyc6d.gif)
NOTE The onboard antenna is selected by default, so you never need to worry about the RF switch being in a bad state, or the ESP32-C6 getting damaged if you forget to plug in an external antenna.
Features & Specifications
| Processor | ESP32-C6 · 32-bit · 160 MHz RISC-V + 20 MHz low-power core |
| Flash | 8 MB QSPI |
| PSRAM | None |
| GPIO | 17 |
| Wireless | Wi-Fi 6 2.4 GHz · 802.11ax · BLE 5.3 + Mesh · Zigbee + Thread 802.15.4 |
| USB | USB-C · power, programming, Serial UART and Serial/JTAG |
| Protection | Reverse USB back-feed protection |
| Power | 700 mA · 3.3 V regulator |
| Sleep | Ultra-low deep sleep current |
| Battery | LiPo charging · JST PH connector pads on the back |
| Sensing | VBAT voltage check · 5V presence detection |
| Onboard | Low-power RGB LED · red power and orange charge LEDs |
| Antenna | 3D high-gain antenna |
| Format | TinyPICO, TinyS2 and TinyS3 compatible footprint |
| Size | 36.3 × 17.8 mm |
| Thickness | 4.3 mm at the USB-C end |
In the box
- Included: Colour pinout card · Unassembled male headers · Unassembled JST PH battery connector · Antistatic bag
Compare the tiny Series[D] boards.
TinyC6[D], TinyPICO[D] and TinyS3[D] specifications
| TinyC6[D] | TinyPICO[D] | TinyS3[D] | |
|---|---|---|---|
| MCU | ESP32-C6 | ESP32-PICO-D4 | ESP32-S3FN8 |
| Flash | 8 MB | 4 MB | 8 MB |
| PSRAM | None | 4 MB | 8 MB |
| Available IO | 17 | 14 | 17 |
| 2.4 GHz Wi-Fi | Wi-Fi 6 | Wi-Fi 4 | Wi-Fi 4 |
| Bluetooth | BLE 5.3 | Classic BT + BLE 4.2 | BLE 5 + Mesh |
| Zigbee / Thread | Zigbee + Thread | — | — |
| USB | USB-C 2.0 · Serial/JTAG | USB-C 2.0 · USB-to-serial | USB-C 2.0 · OTG / Serial / JTAG |
| 3.3 V regulators | 1 × 700 mA | 1 × 700 mA | 1 × 700 mA |
| RGB LED | NeoPixel | NeoPixel | NeoPixel |
| Antenna | Onboard + u.FL · software switch | Onboard + u.FL · software switch | Onboard + u.FL · software switch |
| Battery | 1S LiPo charging · I²C fuel gauge | 1S LiPo charging · I²C fuel gauge | 1S LiPo charging · I²C fuel gauge |
| Size | 36.3 × 17.8 mm | 36.3 × 17.8 mm | 36.3 × 17.8 mm |

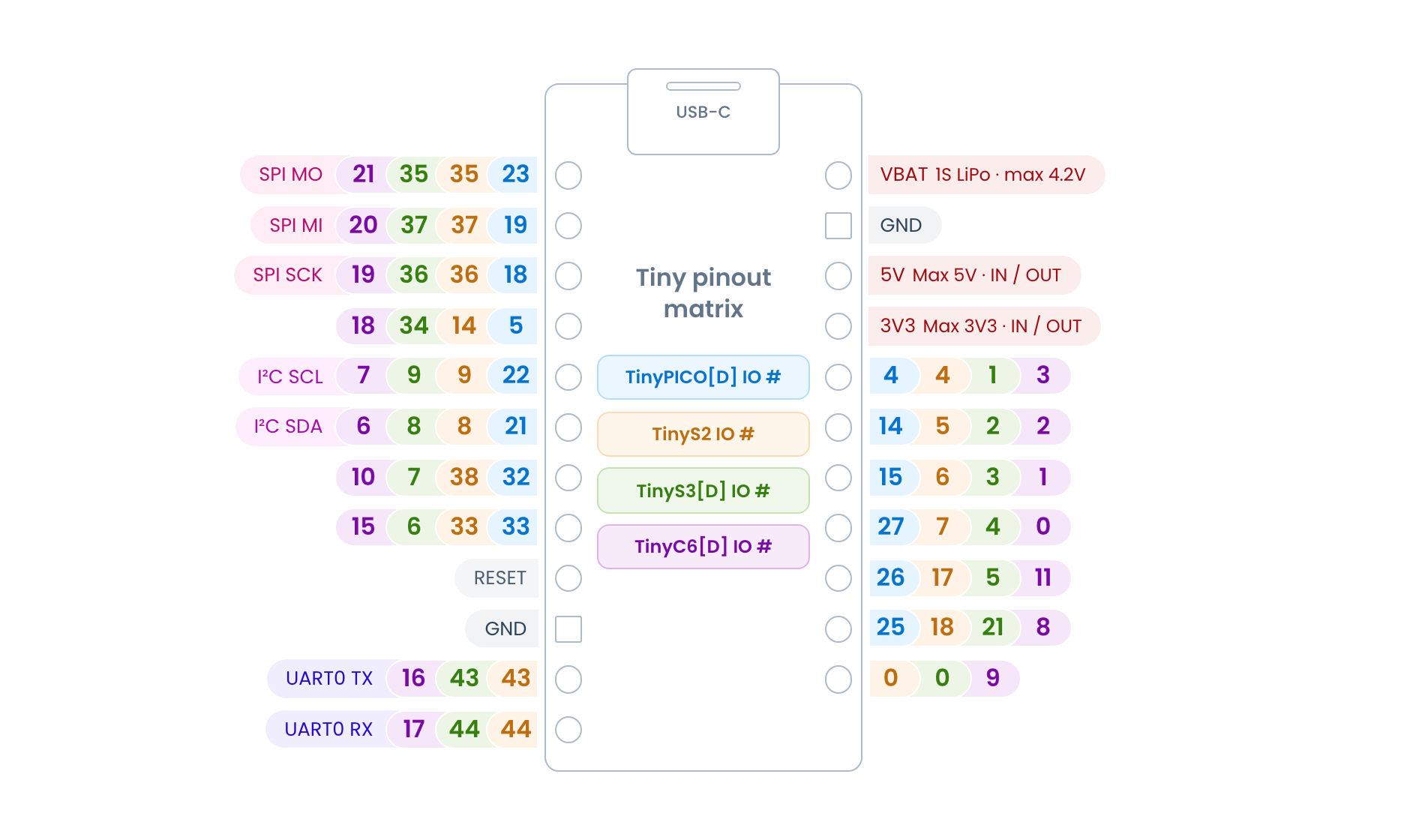

Pinout compatibility matrix
Getting Started Using Your TinyC6[D]
Please have a read through our Getting Started Guide for information on how to start using your TinyC6[D] Development Board.
Code any way you like!
Ships with MicroPython pre-installed!
The TinyC6[D] ships with MicroPython for the ESP32-C6, with its board helper built in.
Of course, you can choose from a wonderful array of other languages and platforms. Explore them all below....
Downloads
Download TinyC6[D] resources, including the schematic, 3D model, KiCAD footprint and more.
GitHub
The Unexpected Maker Series[D] GitHub repository includes:
- 3D STEP file for TinyC6[D]
- High-resolution pinout reference card for TinyC6[D]
- Helper libraries for Arduino and MicroPython
Links to code and documentation
Documentation (unexpectedmaker.com)
Product HS Code: 8542310070
