This product was designed by Unexpected Maker.
By buying this product you support original hardware creators.
![Main product image for TinyPICO[D]](https://lectronz-images.b-cdn.net/lectronz/active_storage/representations/proxy/eyJfcmFpbHMiOnsiZGF0YSI6NzQwMjAsInB1ciI6ImJsb2JfaWQifX0=--2ccb215d8a1583f83a1e78fd2ad408ed92e6cd39/eyJfcmFpbHMiOnsiZGF0YSI6eyJmb3JtYXQiOiJwbmciLCJyZXNpemVfdG9fbGltaXQiOls5NjAsNjQwXSwic2F2ZXIiOnsic3RyaXAiOnRydWV9fSwicHVyIjoidmFyaWF0aW9uIn19--605f1da017bcbb03ce31845cd0e81d97e3b3c574/TinyPICOD.png)
![Product image 2 for TinyPICO[D]](https://lectronz-images.b-cdn.net/lectronz/active_storage/representations/proxy/eyJfcmFpbHMiOnsiZGF0YSI6NzQwMjUsInB1ciI6ImJsb2JfaWQifX0=--ef37b0c91ff1296c8a0a7d95423a94facb9ff5ab/eyJfcmFpbHMiOnsiZGF0YSI6eyJmb3JtYXQiOiJwbmciLCJyZXNpemVfdG9fbGltaXQiOls5NjAsNjQwXSwic2F2ZXIiOnsic3RyaXAiOnRydWV9fSwicHVyIjoidmFyaWF0aW9uIn19--605f1da017bcbb03ce31845cd0e81d97e3b3c574/TinyPICOD_pinoutIGHtGL.png)
TinyPICO[D] - The REINVENTED tiny, mighty ESP32 development board
![TinyPICO[D] features](https://unexpectedmaker.com/images/features/main_features_tinypicod.webp)
Meet TinyPICO[D]
TinyPICO[D] is the TinyPICO you know, re-designed with the Series[D] upgrades: an onboard antenna and a u.FL connector on the same board, switchable from your code, an I²C fuel gauge for accurate battery monitoring & a new ultra low power 1010 Neopixel RGB LED. It keeps the original TinyPICO footprint.

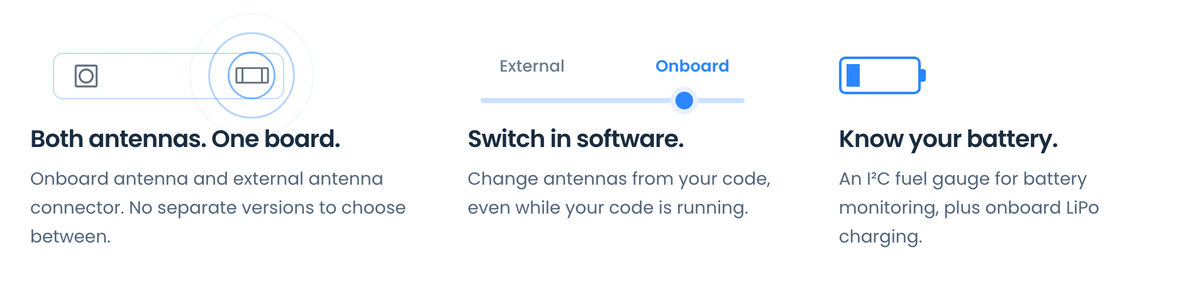

![Series[D] features: Both antennas. One board. · Switch in software. · Know your battery.](https://unexpectedmaker.com/images/product-content/series-d-features-tinypicod.gif)
NOTE The onboard antenna is selected by default, so you never need to worry about the RF switch being in a bad state, or the ESP32 getting damaged if you forget to plug in an external antenna.
TinyPICO[D] uses the CH9102F Serial2UART chip instead of the CP2104. If you are using Windows or macOS, you will need to install the driver to be able to access the TinyPICO via USB.
Features & Specifications
| Processor | ESP32-PICO-D4 · 32-bit · Dual-core LX6 · up to 240 MHz |
| Flash | 4 MB QSPI |
| PSRAM | 4 MB QSPI |
| GPIO | 14 |
| Wireless | Wi-Fi 4 2.4 GHz · 802.11b/g/n · Classic BT + BLE 4.2 |
| USB | USB-to-serial / UART programming |
| Power | 700 mA · 3.3 V regulator |
| Battery | LiPo charging · I²C battery fuel gauge · JST PH connector pads on the back |
| Sensing | 5V sense pins |
| Onboard | Ultra Low-power RGB LED |
| Antenna | 3D high-gain antenna and u.FL connector · software switching |
| Format | Breadboard friendly |
| Size | 36.3 × 17.8 mm |
| Thickness | 4.3 mm at the USB-C end |
In the box
- Included: Colour pinout card · Unassembled male headers · Unassembled JST PH battery connector · Antistatic bag
Compare the tiny Series[D] boards.
TinyC6[D], TinyPICO[D] and TinyS3[D] specifications
| TinyC6[D] | TinyPICO[D] | TinyS3[D] | |
|---|---|---|---|
| MCU | ESP32-C6 | ESP32-PICO-D4 | ESP32-S3FN8 |
| Flash | 8 MB | 4 MB | 8 MB |
| PSRAM | None | 4 MB | 8 MB |
| Available IO | 17 | 14 | 17 |
| 2.4 GHz Wi-Fi | Wi-Fi 6 | Wi-Fi 4 | Wi-Fi 4 |
| Bluetooth | BLE 5.3 | Classic BT + BLE 4.2 | BLE 5 + Mesh |
| Zigbee / Thread | Zigbee + Thread | — | — |
| USB | USB-C 2.0 · Serial/JTAG | USB-C 2.0 · USB-to-serial | USB-C 2.0 · OTG / Serial / JTAG |
| 3.3 V regulators | 1 × 700 mA | 1 × 700 mA | 1 × 700 mA |
| RGB LED | NeoPixel | NeoPixel | NeoPixel |
| Antenna | Onboard + u.FL · software switch | Onboard + u.FL · software switch | Onboard + u.FL · software switch |
| Battery | 1S LiPo charging · I²C fuel gauge | 1S LiPo charging · I²C fuel gauge | 1S LiPo charging · I²C fuel gauge |
| Size | 36.3 × 17.8 mm | 36.3 × 17.8 mm | 36.3 × 17.8 mm |

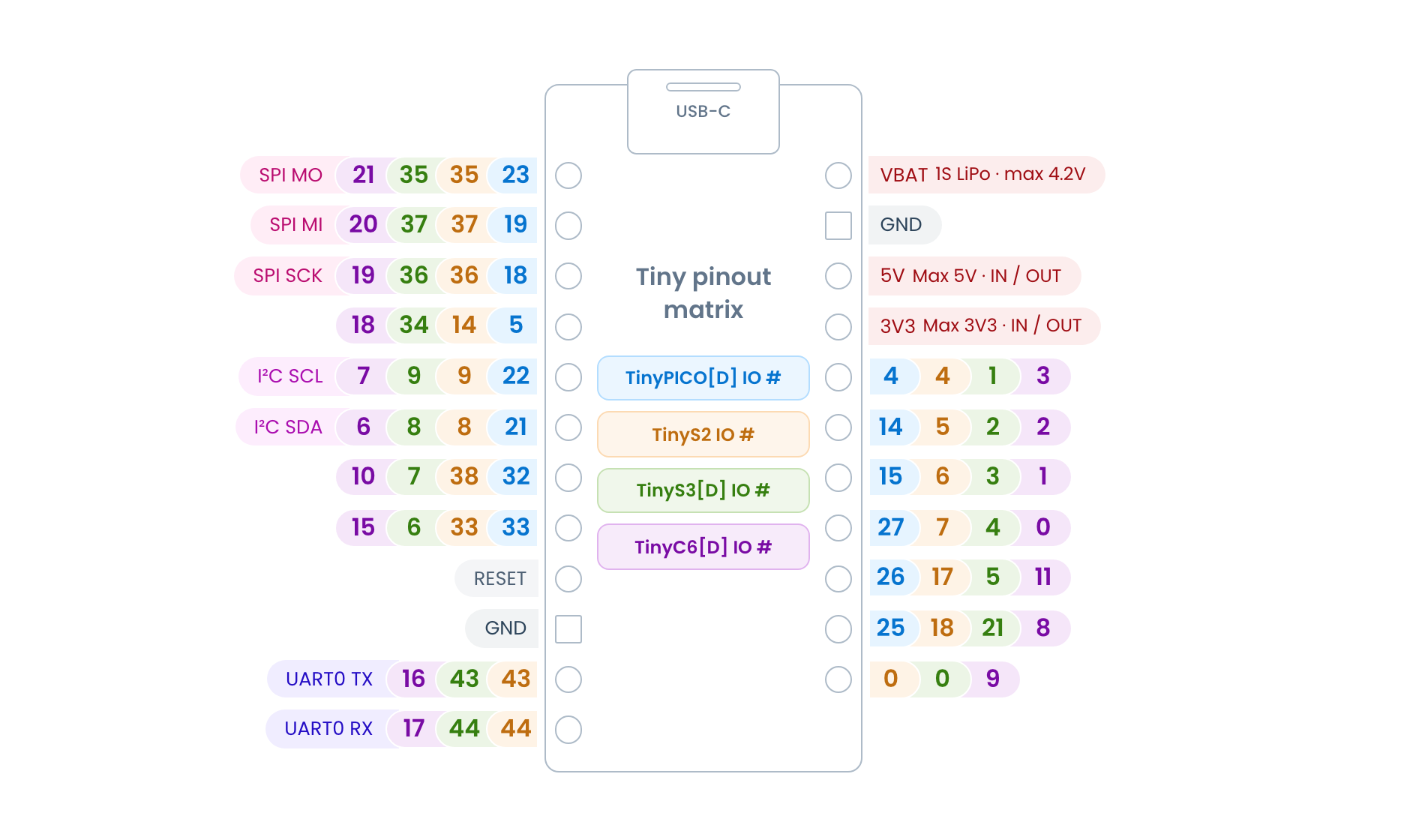

Pinout compatibility matrix
Getting Started Using Your TinyPICO[D]
Please have a read through our Getting Started Guide for information on how to start using your TinyPICO[D] Development Board.
Code any way you like!
Ships with MicroPython pre-installed!
The TinyPICO[D] ships with MicroPython for the ESP32, with its board helper built in.
Of course, you can choose from a wonderful array of other languages and platforms. Explore them all below....
Downloads
Download TinyPICO[D] resources, including the schematic, 3D model, KiCAD footprint and more.
GitHub
The Unexpected Maker Series[D] GitHub repository includes:
- 3D STEP file for TinyPICO[D]
- High-resolution pinout reference card for TinyPICO[D]
- Helper libraries for Arduino and MicroPython
Links to code and documentation
Documentation (unexpectedmaker.com)
Product HS Code: 8542310070
