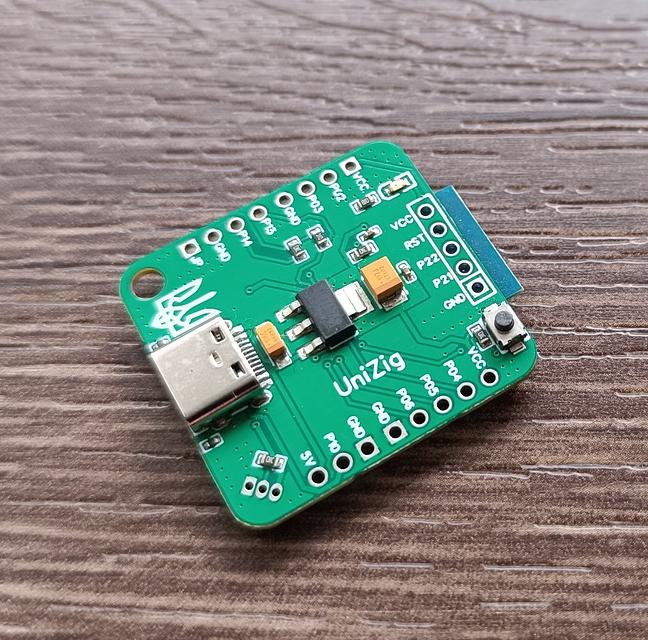

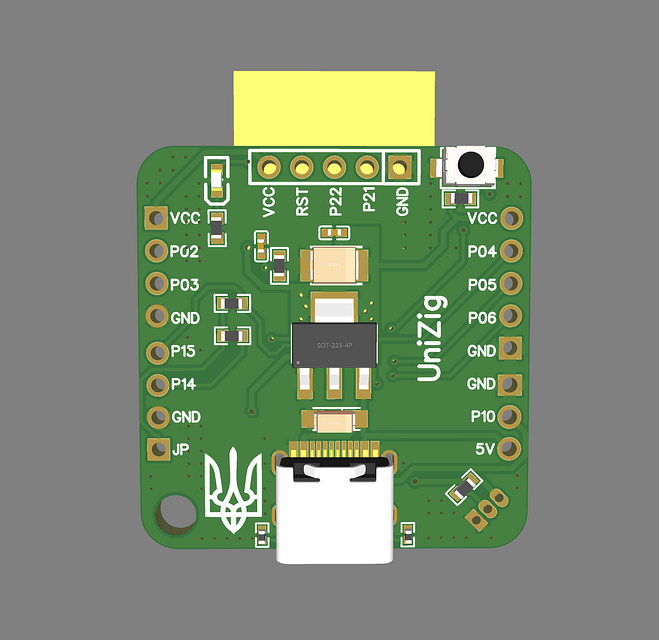

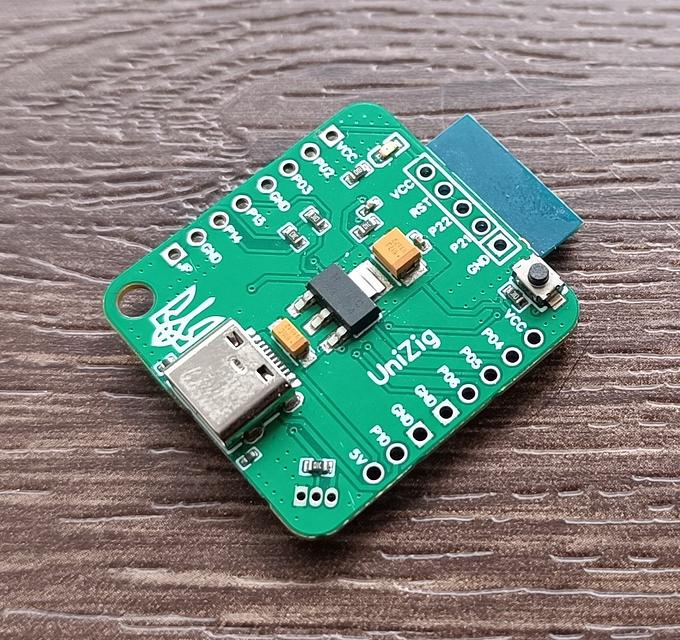

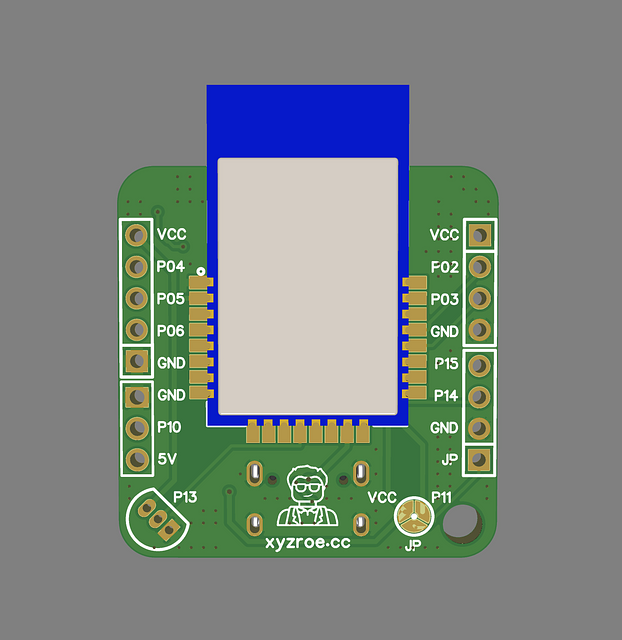

CC2530 Development Module A compact and versatile development board designed for the CC2530 microcontroller, ideal for Zigbee-based IoT applications. This module features easy access to GPIO pins (P02-P06, P10,P11,P13-P15), power supply options (Type C, 5V pin, VCC pin), place for DS18B20 (P13), LED (P17), Button (P16) for seamless integration into wireless projects. Built with a stable LM1117S voltage regulator, it ensures reliable performance. UniZig support simplifies Zigbee protocol implementation. Perfect for prototyping, automation, and smart device development. Compact design, dual-layer layout, and clear pin labeling make it a developer-friendly choice for IoT enthusiasts and professionals.

Key Features:

• CC2530 microcontroller (Zigbee)
• Multiple GPIO pins for sensor/actuator interfacing
• 5V and 3.3V power rails with robust grounding
• Power source jumper for P13,P14 (JP) - VCC or P11
• LM1117S voltage regulation for stability
• Compact dual-layer PCB design

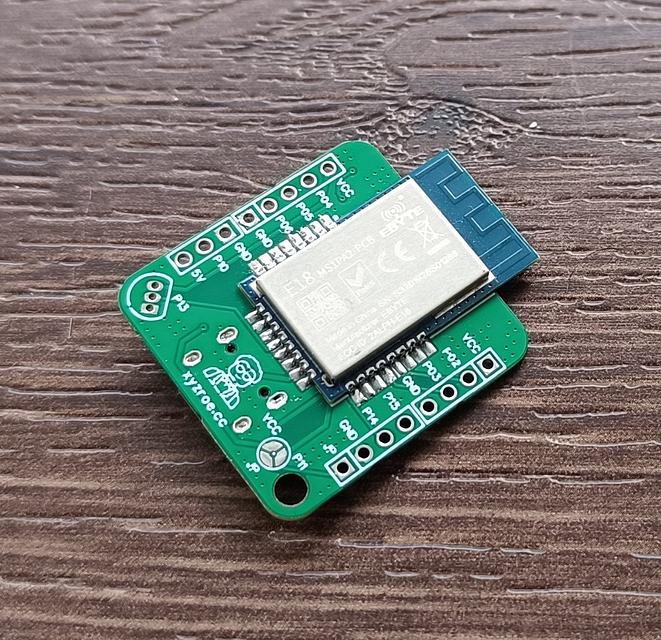

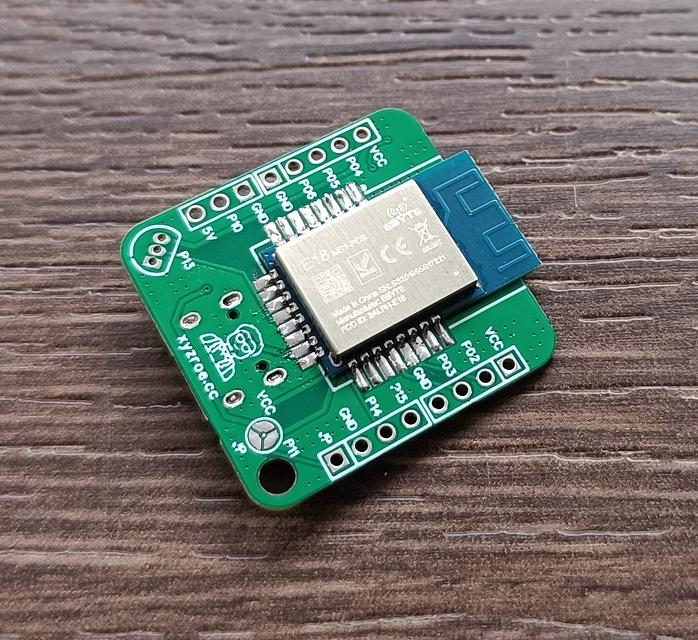

• Module with amplifier (E18-MS1PA2-PCB) or without (E18-MS1-PCB)

Applications: Home automation, wireless sensor networks, industrial IoT, and smart lighting systems.

Some items ship from Germany and others from China. Please check.
