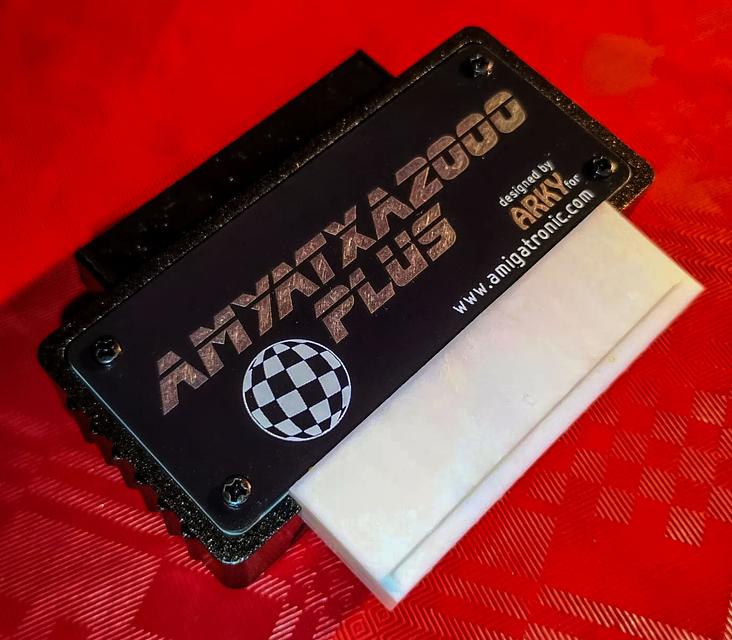

The AMYATXA2000 Plus is an A2000 PSU to ATX converter cable module specifically designed for the Amiga 1500/2000.

With this high quality adapter module you can use a cheaper (and easily available in the market) ATX power supply in your Amiga 2000 or 1500.

The adapter simply plugs into a standard ATX power supply and Amiga 2000 motherboard (as shown in the images) and accepts both 20-pin and 24-pin ATX connectors.

Also, unlike similar cheaper ATX cable adapters, the AMYATXA2000 Plus generates a quartz controlled 50Hz for PAL Amigas (or 60Hz on demand for NTSC Amigas) TTL level square wave "TICK" signal suitable for proper operation of the A2000 and then there is no need to change the jumper configuration on the Amiga 2000 motherboard.

In addition, a two-color LED shows the status of the ATX power supply:

OFF = PSU OFF;

RED = STAND-BY (or there is a short circuit on MoBo) ;

GREEN= POWER GOOD and PSU ON

COMPATIBLE WITH ALL MOTHERBOARD REVISIONS

This product is subject to aesthetical and functional improvements.
