improve performance of Mitsubishi Electric HVAC with a wireless temperature sensor and home automation integration.

In 6 carts

ClimaControl - Mitsubishi Electric Air-to-Air HVAC

Sold by ProtoART

$42.01

No tax for United States [change]
Module can run without sensor, but adding a sensor improves temperature stability and lowers energy costs.
Stock available: 50
Home automation
WiFi
SHARE

Introduction

Increase efficiency and comfort of your Mitsubishi Electric HVAC system and integrate it into your existing home automation setup like FHEM, Tasmota and Home Assistant or any other system that can work with HTTP GET or MQTT.

Compared to DIY solutions, ClimaControl has been professionally developed, tested and proven with hundreds of HVAC setups already and does not require the user to do any soldering or tinkering with cables. Avoiding the risk of damaging your HVAC unit. It is fully Plug-and-Play!

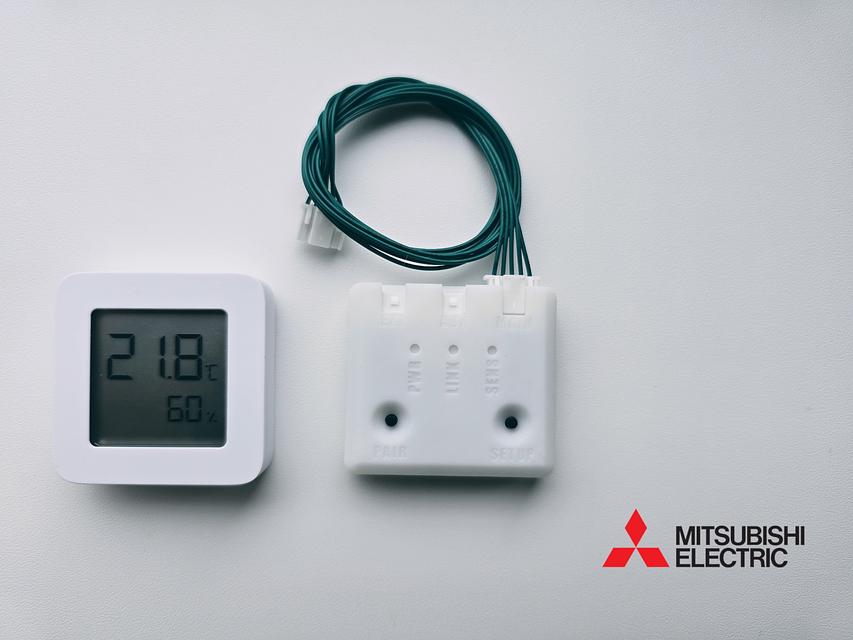

Wireless Temperature Sensor

Most HVAC systems suffer from constant room temperature fluctuations as the internal sensor sits in a localized heat bubble. As a consequence, the indoor unit turns on and off constantly. This is especially noticeable when the room is cold in the morning and you want to heat it up. The sensor will think the temperature has been reached and turns the heating off, while the room temperature might still be 3 degree celsius below the setpoint.

The same happens when you set your indoor unit at a low fan speed: it will sense the wrong temperature(as a lot of hot air stays close to the unit) and turns on and off every few minutes. The result is an unstable and uncomfortable room temperature.

The solution is a wireless temperature sensor which you can place at a strategic place in your room. This significantly improves the temperature stability in the room, adds comfort, reduces equipment wear and saves energy by not turning the outdoor HVAC unit on and off too regularly.

Home Automation integration

Home Assistant

ClimaControl supports the auto discovery feature in Home Assistant making it Plug & Play.

Other systems

Besides Home Assistant. Users have successfully used the ClimaControl on other systems as well. Such systems include:

  • Loxone
  • Hacs
  • Tasmota
  • OpenHAB
  • FHEM
  • and others.
MQTT Implementation

MQTT is fully supported with state and set topics a user can subscribe to:

  • climacontrol/HVAC_XXXXXX/sensor/external/temperature/set
  • climacontrol/HVAC_XXXXXX/heatpump/mode/set
  • climacontrol/HVAC_XXXXXX/heatpump/fan/set
  • climacontrol/HVAC_XXXXXX/heatpump/vane/set
  • climacontrol/HVACXXXXXX/heatpump/settemperature/set
  • climacontrol/HVAC_XXXXXX/heatpump/widevane/set
  • climacontrol/HVAC_XXXXXX/heatpump/power/set
HTTP GET API

HTTP GET API support to control your indoor unit. You can also request a JSON string which contains the status of your indoor unit.

  • Power /control?cmd=heatpump&power=ON (or 1) Turn unit ON/OFF
  • Mode(cool, dry, fan, auto, heat) /control?cmd=heatpump&mode=auto Set mode
  • Temperature /control?cmd=heatpump&set_temperature=21 Set temperature
  • Fan /control?cmd=heatpump&fan=5 Change the fan speed
  • Vane /control?cmd=heatpump&vane=2 Vertical vane direction
  • Wide vane /control?cmd=heatpump&widevane=1 Horizontal vane direction
  • Remote temperature /control?cmd=heatpump&remote_temperature=21 Alternative to the supplied wireless sensor. Update this value at minimum every 15 seconds.
  • Restart module /control?cmd=restart

MelCloud & MHK1/MHK2 wall thermostats

The module has an 'accessory' CN105 port to connect an existing MelCloud wifi adapter or MHK1/MHK2 wall thermostat in parallel. This way you can keep using the functionality of these extensions and of top of that enjoy all functionality of the ClimaControl module.

Frost Protection

Frost protection can be enabled to make sure the room stays at a minimum temperature during holidays. When frost protection is enabled, the ClimaControl will monitor the temperature of the room and turn on the indoor unit as soon as the temperature drops below a certain threshold. When the setpoint has been reached, the indoor unit will turn off again.

Installation

The kit connects to the CN105 port of your indoor unit. You can find the location of this port in the installation manual of your indoor unit. You would need one kit for each indoor unit you want to control or want to have a wireless sensor connected to. Using this kit to include it into your home automation system is optional and the kit can work without home automation if you only want to use the wireless temperature sensing feature.

Supported Models

The below list of Mitsubishi Electric HVAC units have been confirmed to be working. Most Mitsubishi Electric HVAC units that have a CN105 are compatible with this kit. This includes ducted units, wall-mount units and floor-mount units.

You can check if you have a CN105-port in the installation manual of your indoor unit.

(in)complete list of supported units:

  • MSZ-AY
  • MSZ-GE
  • MSZ-GB
  • MSZ-SF
  • MSZ-FD
  • MSZ-AP
  • MSZ-GE
  • MSZ-EF
  • MSZ-GC
  • MSZ-GL
  • MSZ-GV
  • MSZ-FH
  • MSZ-LN
  • MSZ-FE
  • MSZ-FA
  • MSZ-HR
  • MSY-GE
  • SEZ-KD
  • MLZ-KP
  • MLZ-KA
  • MLS-KP
  • MFZ-KA
  • MFZ-KJ
  • PKFY-P06NLMU-E-TH
  • PMFY-P15NBMU-ER5
  • PEAD-RP100
  • PEAD-M140JA
  • PEA-RP140EA2
  • SEZ-KD
  • MPEZS-60VJA
  • PVA-A36AA7
  • MXZ-8C48NAHZ
  • NAXWST18A112AA

Links to code and documentation

No additional links provided for this product.

Shipping policy

Orders are usually shipped once a week. Delivery depends on location.

The seller

ProtoART

Enschede, Netherlands
90 orders since Apr 11, 2023
We develop electronic kits and hacks for 3D printers and Heatpumps
