Introduction

Increase efficiency and comfort of your Panasonic HVAC system and integrate it into your existing home automation setup like FHEM, Tasmota and Home Assistant or any other system that can work with HTTP GET or MQTT.

Compared to DIY solutions, ClimaControl has been professionally developed, tested and proven with hundreds of HVAC setups already and does not require the user to do any soldering or tinkering with cables. Avoiding the risk of damaging your HVAC unit. It is fully Plug-and-Play!

Home Automation integration

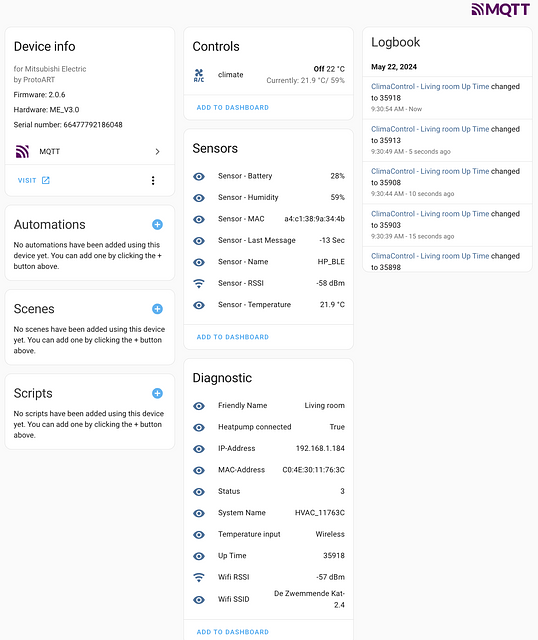

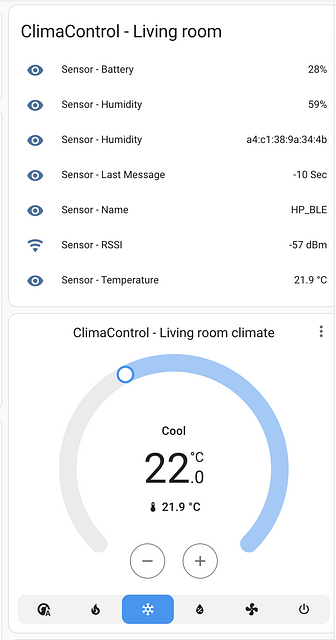

Home Assistant

ClimaControl supports the MQTT auto discovery feature in Home Assistant making it Plug & Play.

Other systems

Besides Home Assistant. Users have successfully used the ClimaControl on other systems as well. Such systems include:

• Loxone
• Hacs
• Tasmota
• OpenHAB
• FHEM
• and others.

MQTT Implementation

MQTT is fully supported with state and set topics a user can subscribe to:

• climacontrol/HVAC_XXXXXX/heatpump/mode/set
• climacontrol/HVAC_XXXXXX/heatpump/fan/set
• climacontrol/HVAC_XXXXXX/heatpump/vane/set
• climacontrol/HVACXXXXXX/heatpump/settemperature/set
• climacontrol/HVAC_XXXXXX/heatpump/widevane/set
• climacontrol/HVAC_XXXXXX/heatpump/power/set

HTTP GET API

HTTP GET API support to control your indoor unit. You can also request a JSON string which contains the status of your indoor unit.

• Power /control?cmd=heatpump&power=ON (or 1) Turn unit ON/OFF
• Mode(cool, dry, fan, auto, heat) /control?cmd=heatpump&mode=auto Set mode
• Temperature /control?cmd=heatpump&set_temperature=21 Set temperature
• Fan /control?cmd=heatpump&fan=5 Change the fan speed
• Vane /control?cmd=heatpump&vane=2 Vertical vane direction
• Wide vane /control?cmd=heatpump&widevane=1 Horizontal vane direction
• Restart module /control?cmd=restart

Comfort Cloud

The module has an 'accessory' CN-CNT port to connect an existing CZ-TACG1 wifi adapter in parallel. This way you can keep using the functionality of these extensions and of top of that enjoy all functionality of the ClimaControl module.

Frost Protection

Frost protection can be enabled to make sure the room stays at a minimum temperature during holidays. When frost protection is enabled, the ClimaControl will monitor the temperature of the room and turn on the indoor unit as soon as the temperature drops below a certain threshold. When the setpoint has been reached, the indoor unit will turn off again.

Temperature limit

Some residents in the house can think setting the A/C to 28degree Celsius makes it cool or heat faster and then forget to set it back. A temperature limit can be set which limits the minimum and maximum temperature, even if it is being changed by the IR remote.

Installation

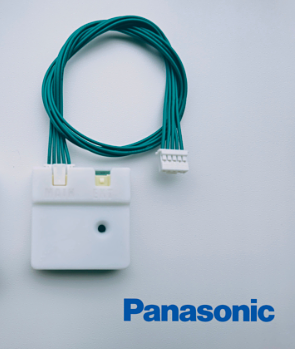

The kit connects to the CN-CNT port of your indoor unit. You can find the location of this port in the installation manual of your indoor unit. You would need one kit for each indoor unit you want to control or want to have a wireless sensor connected to. Using this kit to include it into your home automation system is optional and the kit can work without home automation if you only want to use the wireless temperature sensing feature.

Supported Models

Most Panasonic HVAC units that have a CN-CNT are compatible with this kit. If your AC has the ability to connect a Panasonic CZ-TACG1 wifi adapter, then it is compatible with ClimaControl. This includes ducted units, wall-mount units and floor-mount units.

You can check if you have a CN-CNT-port in the installation manual of your indoor unit.
