UNIVERSAL STEPPER MOTOR DRIVER "POLOLU" DRV8825 High Current, FOR YOUR 3D PRINTER OR CNC

DRV8825 Stepper Motor "Stepstick" Driver "Pololu"

by SmartElectronic

$4.18

No tax for United States [change]
Stock available: 5
3D printing
Robotics
CNC

This is one of the most basic stepper motor controllers also know as "POLOLU" Compatible with 3D printers: Prusa Mendel, Ultimaker, Rostock(delta), Printbot, Makerbot It's an essential module to structure a 3d printer, engraving machines or small CNC

This breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling). The driver has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. This board ships with 0.1″ male header pins included

Specifications:

This product is a carrier board or breakout board for TI’s DRV8825 stepper motor driver; we therefore recommend careful reading of the DRV8825 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil ).

Here are some of the driver’s key features:

  • Simple step and direction control interface
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • 45 V maximum supply voltage
  • Built-in regulator (no external logic voltage supply needed)
  • Can interface directly with 3.3 V and 5 V systems
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Short-to-ground and shorted-load protection
  • 4-layer, 2 oz copper PCB for improved heat dissipation
  • Exposed solderable ground pad below the driver IC on the bottom of the PCB
  • Module size, pinout, and interface match those of our A4988 stepper motor driver carriers

WHAT IS INCLUDED

1 x DRV8825 stepper motor drive module

ORDERING

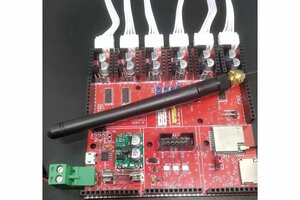

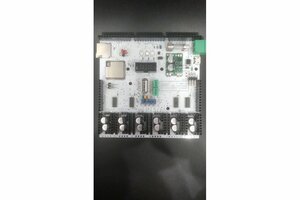

Please note that this item is ONLY stepper controller YOU NEED A BOARD WITH MCU TO DRIVE A STEPPER MOTOR You can use our 6 pack compact CNC controller available in our shop

Links to code and documentation

No additional links provided for this product.
