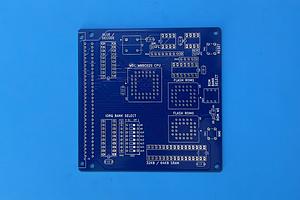

Note: The 6502 CPU Card is supplied in Kitset form only (assembly required). The base price is for the double-sided silkscreened 6502 CPU Card PCB ONLY. The optional packs provide some key components only. Other components are also required to make a complete 6502 CPU Card Kitset. See BOM below (and photo).

What is Minimalist Europe Card Bus

Europe Card Bus (ECB) is a Retro CPU Bus standard from the late 1970’s / early 1980’s.

The “Minimalist Europe Card Bus” (as I’ve called it), is a Retro 8-bit CPU Bus and PCB design standard that I decided to define & document. The purpose of which is to provide a modular platform for me to re-experience the fun of experimenting with the different 8-bit CPU’s, and the various video and peripheral devices, that I grew up with in the late 1970’s and early 1980’s.

My goal is that of a robust and modular design platform which allows me to create interchangeable PCB cards, based on time proven reliable bus connectors and modern low-cost prototype PCB manufacturing.

i.e. A robust, flexible, and low cost way for me to re-create some of the early microprocessor circuits, that I’d originally built using Wire-Wrap methods back in the day.

As evident from the name, the Bus itself is based on a Minimalist implementation of the original Europe Card Bus (ECB) standard.

Standardised Mechanical Specification for a Minimalist ECB “MECB” Board

MECB Standardised Board Design Parameters:

• Satisfy the 100mm square maximum board size, for low-cost prototype PCB manufacturing.
• Utilise the lower cost 64-pin (Row A&C) DIN 41612 type C connectors, for cost saving.
• Ensure the DIN 41612 connector(s) can be easily centred across the board width, grid aligned.
• Provide two standardised corner holes, on the edge opposing the right-angle DIN connector, to allow for attachment of card handles (to ease board insertion & extraction), or for board mounting – refer next point.
• Provide an additional two standardised corner mounting holes on the edge with the right-angle DIN connector, to provide a full set of four corner holes (to allow for stand-alone board mounting).
• Standardise PCB corner rounding, for sharp corner removal consistency across all boards & visual tidiness.

MECB Standardised Board Design Notes:

• PCB layout is designed utilising 0.127mm (5.0 mils) grid setting.
• Board size is 99.822mm, which represents the greatest even multiple of 0.127mm (i.e. multiple of 0.254mm – 10.0 mils), that will fit within the desired maximum 100mm board dimension.
• Standard M3 sized mounting holes were chosen. An additional two mid-edge located mounting holes are specified for the Backplane board only (to provide additional mechanical support).
• For reference, DIN 41612 connectors can utilise standard M2.5 mounting bolts (8mm length for the straight connectors, 10mm length for right angle connectors).
• Implemented as a KiCAD Template, to assist with simplifying the creation of each new MECB board design.

Please refer to the attached photo outlining all dimensions for the MECB Standardised Board Mechanical Specifications.

6502 or 65C02 CPU Card

The 6502 CPU Card has been tested with (and has been designed for), original MOS 6502 and currently in-production WDC W65C02S processors.

My videos demonstrate successfully testing the system with both of these processors, combined with the existing MECB Motorola I/O Card and MECB Backplane.

In addition, the 6502 CPU Card is expected to work with other 6502 and 65C02 variants. Jumpers are provided based on the use of Pin 1 (Vss or NC), and Pin 36 (NC or Pull-up).

What You Get

To satisfy different people's needs, I've split the 6502 CPU Card Kitset into optional add-on packs.

Firstly, note that the base price is for the double-sided silkscreened 6502 CPU Card PCB Only.

Then, you can add the optional Packs that might be helpful to you. Then, to complete the Kitset, you'll need to source the remaining parts to complete the BOM below.

Optional Hardware Pack includes:

• 1x Right-Angle Male DIN41612 364 Keyed Bus Connector
• 2x M2.5 Stainless Steel Bolt 10mm (2 required for Right Angle Connector)
• 2x M2.5 Stainless Steel Hexagonal Nut (for above Bolts)
• 4x 12mm Nylon PCB Spacer
• 8x 6mm Nylon Bolt (for Spacer mounting)

Optional Programmed ATF16V8 PLD Pack includes:

• An ATF16V8 PLD Chip Tested and Programmed for the 56K RAM + 8K ROM memory map (as used in the initial video, linked below).

6502 CPU Card BOM

The following is a full Bill Of Materials (BOM) to allow fully assembling your 6502 CPU Card.

Note that the PCB is supplied, and some select components are available in the option packs. The rest of the components will need to be sourced by yourself.

Some components are of course optional. For example the IC Sockets, although I do highly recommend IC Sockets are used. In addition you may choose not to install the NMI push-button and button-debounce circuit.

I have also included an indication of where I sourced my parts from, if this is of assistance.

The Video linked below provides the initial presentation of the 6502 CPU Card, as well as demonstrating the steps I took for assembly and initial testing.

Via the Documentation link (below) you'll also find and update video for the current v1.3 version (which added NMI support), and other videos presenting different components of the MECB retro 8-bit computing project.

Your 6502 CPU Card Kitset order is shipped in a robust cardboard carton with packing, for safe delivery via New Zealand International Air Parcel (see example shipping photo).

Note: Please visit the Documentation link (below) for more information on MECB, additional 6502 CPU Card update video(s), and for details of the various MECB Cards that have been design so far.
