MIDI to trigger/gate module for AE Modular - pairs with the mb/1 MIDI input module

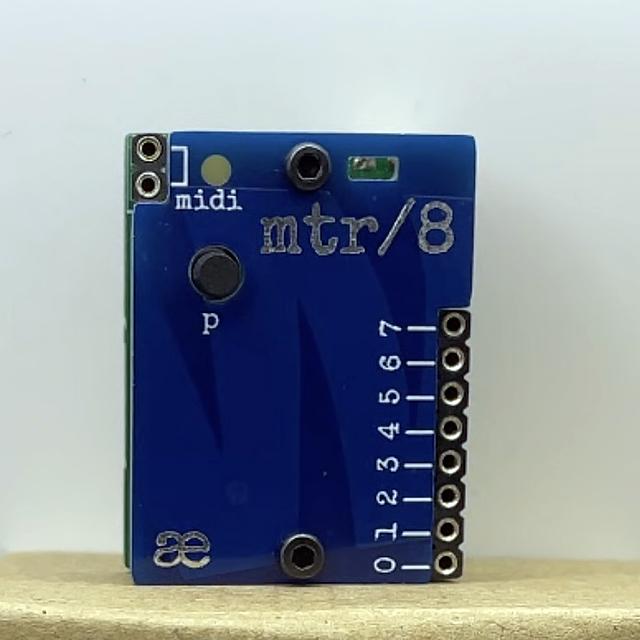

mtr/8 — MIDI Trigger Module [µ-module]
Sold by wonkystuff
$31.17
No tax for United States [change]
Stock available: 1
The third module to be added to the wonkystuff MIDI range is an 8-output MIDI to Trigger converter. It's actually a MIDI-Gate converter, but the main use for this was to trigger the wonkystuff µDrums! For an overview of the wonkystuff MIDI modules, I have written an overview article.
The mtr/8 maps note on/off messages of 8 consecutive MIDI notes to each of it's outputs.
The module consumes MIDI signals from any of the MIDI channel outputs of the mb/1.
PLEASE NOTE: This module requires the mb/1 module in order to function correctly - it does not directly connect to MIDI devices!
- Inputs:
- MIDI serial data (I)
- Outputs:
- Gate outputs (x8)
- MIDI Thru (T).
Further details
The mtr/8 is a MIDI to Gate/Trigger module which maps consecutive note-on/off messages to each of its 8 outputs in a similar manner to the mcc/4. The received note is the 'base' note and is mapped to output 0, the next note to output 1 etc. — for example, if the mtr/8 receives Middle C (C-3, or note 60) the outputs will map from Middle-C to the G above (G-3, note 67).
The UI is based on a single front-panel button:
- Short press (less than 4 seconds): 'Listen' mode: The next MIDI Mote-on received will be the new 'base' Note. If no Note-on is received, then the module will revert to the last-stored base note. Whilst in 'listen' mode, the MIDI LED will light — the LED extinguishes when listen mode is no longer active (either due to timeout, or because a Note-on message has been received)
- Long Press (longer than 4 seconds): Writes the current base note to eeprom, so that the next time the module is powered on the current base note is reloaded. Whilst the button is pressed, the LED will light — when the write to eeprom has completed, the LED will extinguish.
