A MIDI input module for AE Modular to support the new 'MIDI ecosystem' modules

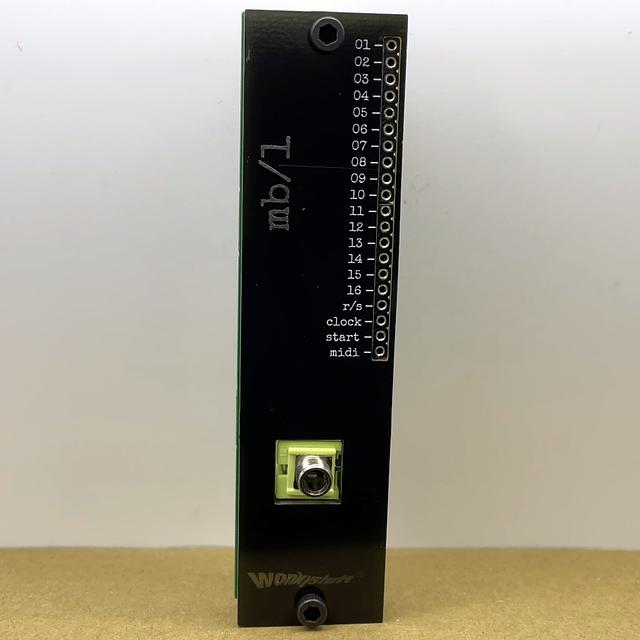

mb/1 — MIDI Input Module [AE Modular module]
Sold by wonkystuff
$41.56
No tax for United States [change]
Stock available: 5
A year after it's first appearance at SynthFest 2022, we've finally released a new signal format for AE Modular: MIDI! For an overview of why this is different, I have written an overview article.
UPDATE: The latest version of this module supports both Type A and Type B TRS MIDI connections (using the LPZW Auto-Crossover circuit by Kay Knofe published here)
PLEASE NOTE: The MIDI signals cannot be directly connected to existing AE modules, take a look at the companion MIDI modules.
- Inputs:
- 3.5mm TRS MIDI (Type A/B)
- Outputs:
- 16x MIDI Channel data;
- Clock;
- Run/Stop gate;
- Start pulse;
- MIDI Thru.
Further details
The clock signals can be connected to existing modules, for example to drive a sequencer, and there is a WebMIDI configuration application available to edit clock sub-division and offset — so that a slower clock pulse can be generated, as well as adding a delay before the clock starts.
The Configuration Application can be found here
MIDI Specification
The Configuration Application sends configuration data via System Exclusive messages, the available commands are below (These are the same commands as used by Kenton Electronics for their Pro Solo mkIII MIDI-CV converter).
All numeric values shown below are in hexadecimal format for clarity.
Set Clock Division:
Set the division rate to be applied to the incoming 24ppqn MIDI clock signal. A table of typical division values can be found on the configuration application web page.
F0 00 20 13 1A <deviceID> 20 00 29 <channel> <division> F7
- deviceID — Always
00for mb/1 - channel — Always
00for mb/1 - division — The division rate to apply (1-128). Sent as 'division-1', so that a division of
6(to produce 1/16th pulses) would be sent as5.
NOTE: Division and offset values are not automatically stored; if the values are required to be active at the next power on, then the store command must be sent.
Set Clock Offset:
Sets the number of 24ppqn clocks to delay before the clock output becomes active. Applies only at the next MIDI clock-start message.
F0 00 20 13 1A <deviceID> 20 00 2A <channel> <division> F7
- deviceID — always
00for mb/1 - channel — always
00for mb/1 - offset — The number of MIDI clock pulses to delay before starting the clock signal output (0-127).
NOTE: Division and offset values are not automatically stored; if the values are required to be active at the next power on, then the store command must be sent.
Store Division and Offset:
Stores the currently active division and offset to the mb/1 eeprom memory.
F0 00 20 13 1A <deviceID> 20 00 7F <channel> 00 F7
- deviceID — always
00for mb/1 - channel — always
00for mb/1
