HDMI-compatible dongle for the PICO9918 v1.2, v1.3 and PICO9918 PRO v2.0

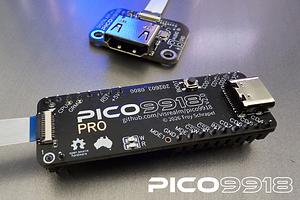

PICO9918 Dongle (HDMI)
Sold by Troy Schrapel (visrealm)
$25.00
No tax for United States [change]
Stock available: 20
Digital A/V (HDMI) Dongle
The Digital A/V dongle provides video and audio output directly to any HDMI-compatible display. It connects to the PICO9918 via the FFC connector available on v1.2+ boards.
Compatibility
The Digital A/V dongle is fully compatible with all FFC-equipped PICO9918 boards:
- PICO9918 PRO v2.0
- PICO9918 v1.3
- PICO9918 v1.2
Connection
The dongle connects via your existing 12-pin 0.5mm pitch FFC cable, so doesn't include an FFC cable by default. Cables are available as an option.
Audio Wiring
The dongle has two audio wires that need to be connected to the host system's mainboard to pass audio through to the HDMI output. The wire and header is included.
What do you get?
- PICO9918 HDMI dongle
- 2-pin audio lead + header
Links to code and documentation
