The No Inductor power supply that utilizes USB PD 3.0/3.1 Programable Power Supply (PPS) to request voltage and set current limit.

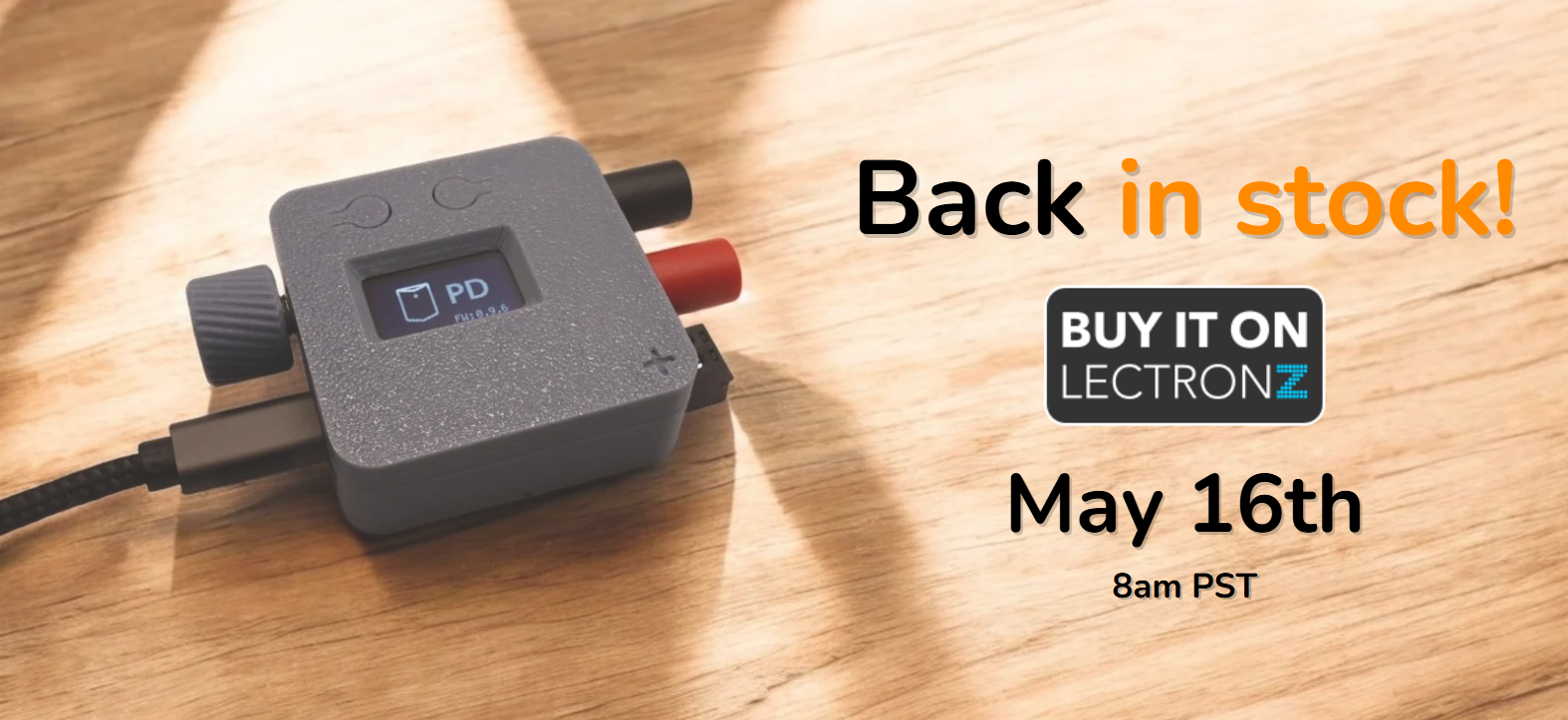

PocketPD - USB-C Power Supply - BetaUser

Sold by CentyLab

$62.00

No tax for United States [change]
This item is currently out of stock.
Sign up to get notified when this product is back in stock.
USB
Tools
Power
SHARE

Update: This is the first production prototype. User will get the full hardware experience and the code update will keep rolling until we get to a stable version (V1.0)

This project utilizes PicoPD's previous work to prototype a bench power supply. Beside portable soldering iron, this should be one of the best portable tools for college electrical engineering students. This bench power supply is powered by USB-C PD 3.0/3.1 using their PPS capability. There is no buck or boost converter on the board. We will explore how to implement constant voltage (CV) and constant current (CC), two modes that are featured in all of the standard bench power supplies. Best of all, it will fit inside your pocket!

As the DIY community has grown, there are multiple ways to implement control features like adjusting parameters via Wifi, Bluetooth, or touch screen. We want to keep the design language simple, just physical knobs and buttons to control. This will give the system higher reliability when you need it to work.

Note: Prototype unit will come almost assembled with PETG or ABS 3D printed case and acrylic lid. There will be an option for XT60 or DC barrel jack that you can solder on after. Or leave us a note at check out on which version you would like us to soldered on. The code is under development but will be provided as open-source software.

Important note

Not all USB-C power supplies support Programmable Power Supply (PPS) but many modern charger/powerbank does. Through our small sample size that includes powerbank/charger from Anker, Ugreen, and Baseus, here is our recommendation for getting Constant Current mode out of the box:

When using a source that doesn't support PPS, the software will enter 5V PDO profile. Profile adjustment can be done by long press Volt/Amp button.

Hardware specification for production prototype

  • Input: 3.3V-21V @5A max USB-C
  • Output: 3.3V-21V @5A max Banana jack or XT60/Barrel Jack
  • RP2040 Micro-controller + 16MB of QSPI flash
  • 5A - 23V max ideal diode load switch
  • On board current/voltage sensor
  • 0.96" OLED display over I2C
  • Encoder and switches for user input

Note: All output connector tap on the same power rail.

Mechanical Specification

  • ABS 3D printed case
  • ABS 3D printed encoder knob
  • PLA 3D printed button cover
  • Acrylic lid
  • Operating temperature: 0°C - 60°C.

Device protection

At input

  • TVS/ESD protection for CC/USB2.0/VBUS

At output

  • TVS/ESD protection for VOUT
  • Fly-back diode protection
  • Reverse voltage protection
  • Reverse current protection
  • Short circuit protection

Links to code and documentation

Documentation (hackaday.io)

Code (github.com)
