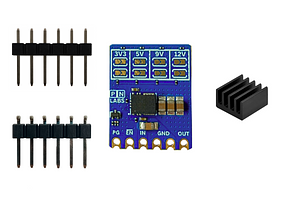

Main product image for Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V
Product image 1 for Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V
Product image 2 for Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V
Product image 3 for Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V
Product image 4 for Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V
Product image 5 for Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V
Wide Input Range 15-52 V Buck Regulator with 3.3, 5 and 12 V outputs rated for 5, 5 and 10 A continuous.
Power management
Power
Prototyping

Power Pal: 15-52 V Buck Regulator 3.3, 5 and 12 V

Sold by PN Labs

$59.95

No tax for United States [change]
Stock available: 2
Volume discount
5+ items
$55.15
10+ items
$50.96
Check
Original Design
This product was designed by PN Labs. By buying this product your support original hardware creators.
SHARE

Power Pal is a high-power, high-efficiency DC-DC synchronous buck converter designed to work with a wide range of battery packs and voltage supplies. Built for serious prototyping and deployment, Power Pal delivers 12 V, 5 V, and 3.3 V simultaneously from inputs spanning 15-52 V (suitable for 5S to 12S lithium packs).

Product Specs:

  • 12 V @ 10 A (up to 16 A*)
  • 5 V @ 5 A (up to 6 A*)
  • 3.3 V @ 5 A (up to 6 A*)
  • Wide input range: 15–52 V (14.5 V min)
  • 160 W continuous operation at 25 C ambient, 250 W achievable by adding a fan with the onboard JST connector.
  • VIN pass-through terminal for powering downstream stages
  • Adjustable output trim to compensate for cable or load drop
  • High efficiency two-stage cascaded architecture for reduced heat generation.
  • Microcontroller-compatible external enable (EN).
  • Power-Good (PGOOD) output with onboard status LED
  • Controlled 80 ms soft-start to reduce inrush current during power-on.
  • Screw-terminal power connections for robust installs
  • Optional 12 V fan header for active cooling

Built-In Protection Features:

  • Reverse polarity protection (ideal-diode controller + MOSFET)
  • Input TVS surge suppression
  • TVS protection on all outputs
  • Regulator overcurrent limiting
  • Overtemperature shutdown
  • Undervoltage lockout / cutoff

Perfect For:

  • Robotics & autonomous systems
  • Battery-powered electronics (5S–12S lithium)
  • Prototyping and test equipment
  • Industrial & embedded controllers
  • Non-isolated PoE auxiliary supplies

If you’re tired of stacking regulators, fighting noise, or babying fragile power boards, Power Pal is your drop-in solution. Get yours today!

Links to code and documentation

Documentation (pnlabs.ca)

Product HS Code: 85044070
