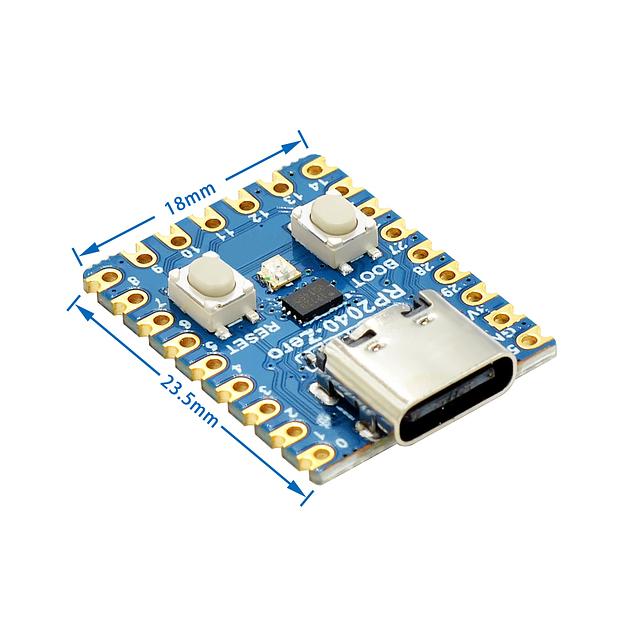

Tiny RP2040 controller

Theses controllers are suitable for the Little Big Scroll 4 and the UnOrthoDox kits found in this shop, as well as many other designs/projects you can find online.

Specification

• RP2040-Zero footprint - NOT interchangeable with ProMicro controllers
• RP2040 MCU, Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• USB-C connector, (USB 1.1 device and host support)
• Castellated module allows soldering direct to carrier boards
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

What's included

These are delivered in a sealed ESD bag, with pinheaders included.

Note that I'm merely reselling these AS-IS to make it a one-stop-shop for building your keyboard.

You can likely find them cheaper on AliExpress or similar if you are willing to order from various sources. I'm merely covering my expenses, shipping/taxes etc, with no actual measurable profit reselling these.

Normal handling time is 3-5 working days (Predominantly done on weekends). Build items usually take 1-2 weeks.

All packages are represented to the courier/customs at their true value, and all responsibility for import fees and taxes resulting thereof lies with the buyer. DDP is applied where available.

Please note that when selecting a shipping option clearly marked as ‘uninsured’ or without tracking, you accept the responsibility for packages lost in transit.

All items are sold with a 24-month limited warranty, as per (2011/83/EU). Shipping of items returned for repair or replacement is solely the responsibility of the buyer. (This includes taxes and/or customs fees resulting from incorrect/incomplete shipping documentation.)

The SE "Act on Distance Contracts and Off-Premises Contracts" (SFS 2005:59) & The EU "The Distance Selling Directive" (97/7/EC) allow returns initiated within 14 days of receiving the item. Shipping of returned items is solely the responsibility of the buyer.

Please note that in the case of kits with multiple components, warranty to the individual components cannot be applied to the resulting build, and does not cover physical damage from incorrect soldering or handling by the end user. Please test active components (controllers) and initiate a warranty claim for manufacturing defects BEFORE you start to solder them!
