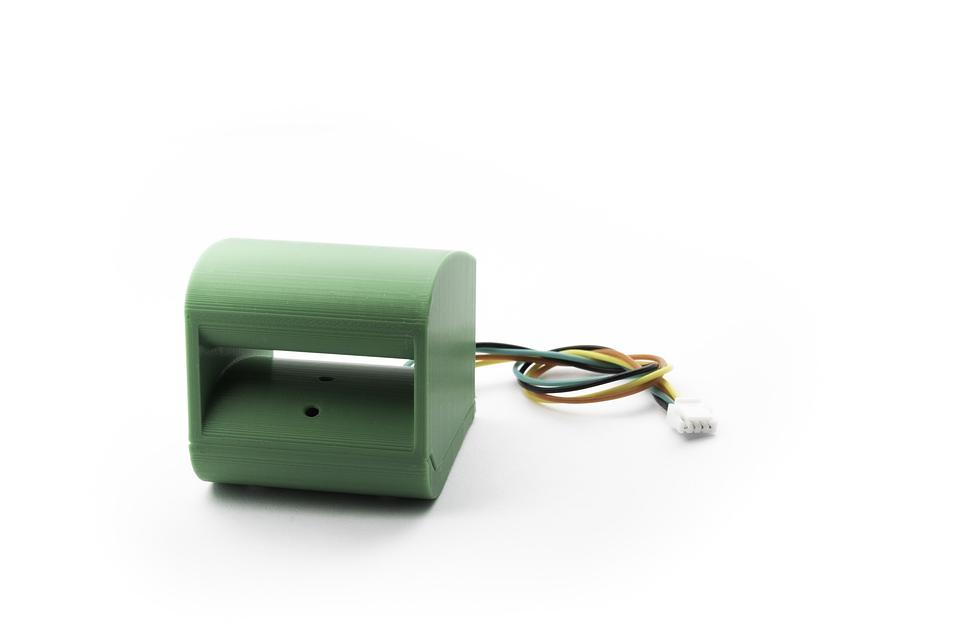

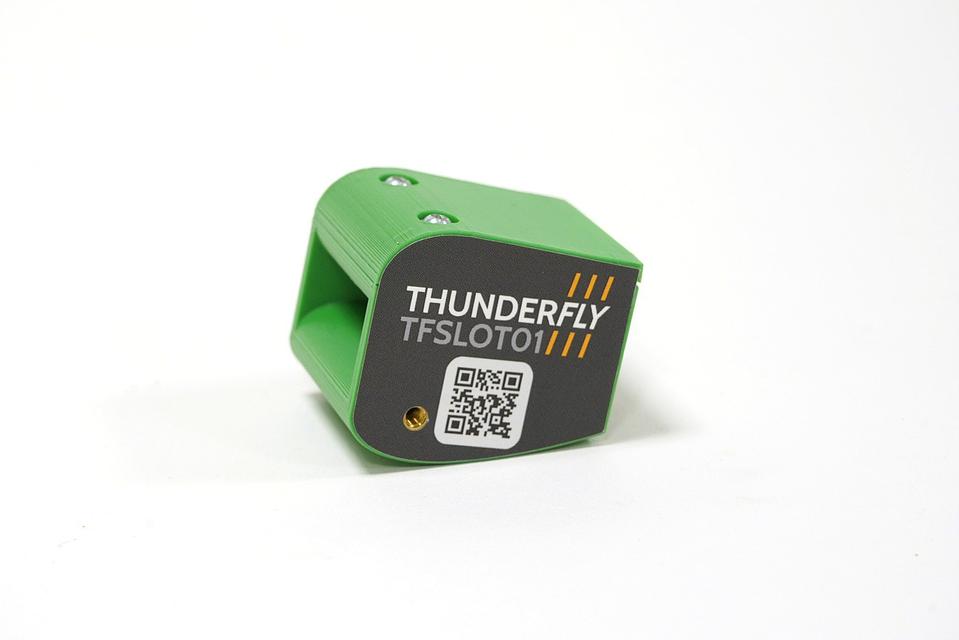

TFSLOT01: Clogging-Free Airspeed Sensor for UAVs
Sold by ThunderFly
$455.41
No tax for United States [change]

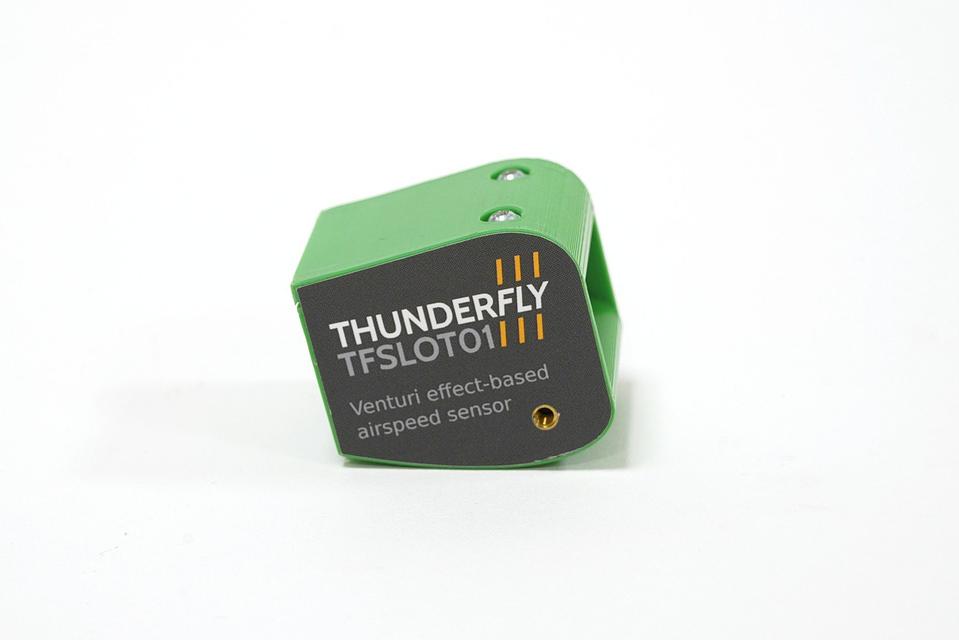

The TFSLOT01 is a next-generation airspeed sensor designed for UAVs. It uses the Venturi effect for superior performance at low airspeeds. This clog-resistant design is coupled with an integrated 9-axis IMU to be ready for additional diagnostic capabilities like vibration monitoring and angle-of-attack measurements.
This product is fully open-source, with a customizable 3D-printed case for seamless integration into UAV designs. Whether you're a developer, researcher, or enthusiast, the TFSLOT01 provides reliability, adaptability, and advanced functionality.
Key Features
- Clog-Resistant Design: Venturi-based measurement removes stagnation point.
- Integrated IMU: Features a 9-axis IMU (magnetometer, accelerometer, gyroscope) for advanced diagnostics.

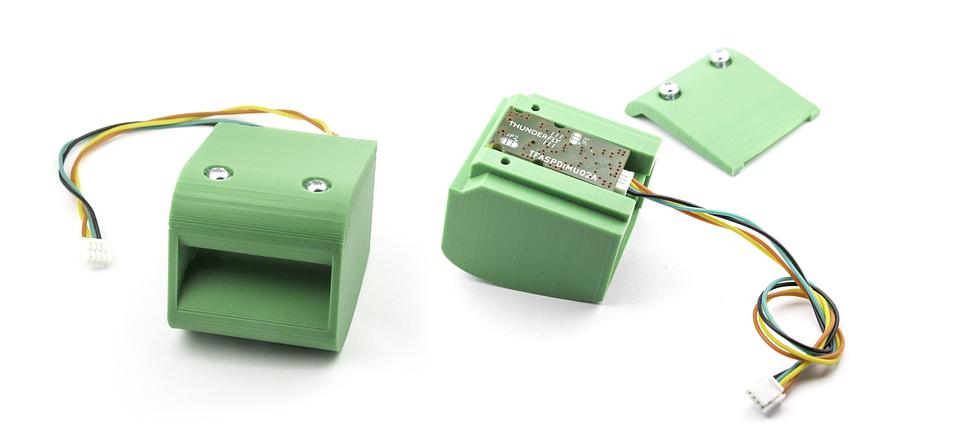

- Customizable: 3D-printed housing can be adapted to specific applications.
- Weatherproof Build: IP42-rated for reliable operation in diverse conditions.
- Enhanced Resolution: Optimized for speeds below 10 m/s.
- Direct Integration: No need for additional tubing, reducing maintenance concerns.
Why Choose TFSLOT01?
The TFSLOT01 offers reliable airspeed measurement with its innovative Venturi-effect design, ensuring high accuracy and clog-free operation at low speeds. If you're looking for a lightweight and compact airspeed sensor based on the proven Pitot-static principle, check out our TFPITOT01. Designed for minimal weight and precise measurements, it’s an excellent choice for applications where every gram matters.
Technical Specifications
| Parameter | Value | Description |
|---|---|---|
| Airspeed Range | 0 - 48 m/s | Assumes air density of 1.29 kg/m³ |
| Dimensions | 35 x 40 x 35 mm | Default 3D-printed case |
| Weight | 25 g | Compact and lightweight |
| Operating Temperature | −20°C to +40°C | Reliable in diverse weather |
| Input Voltage | +3.6V to +5.4V | Overvoltage protection included |
| I2C Connector | 4-pin JST-GH | Pixhawk-compatible standard |
| Weather Resistance | IP42 | Protection against dust and water splashes |
The sensor can operate at any altitude, but sensitivity decreases as air density drops. See the documentation for details.
Compatibility
- PX4 Autopilots: Full airspeed and IMU integration.
- Ardupilot: Hardware-compatible (airspeed calculations require manual configuration).
- Custom Systems: Supports I2C interfaces.
Follow the PX4 guide for setup.
Included in the Package
- TFSLOT01 sensor (assembled and ready to use)
- 3D-printed protective case
- Sealing O-rings
- Optional I2C cable
Accessories
For enhanced reliability and flexibility, we offer high-quality I2C cables, specially designed to minimize electromagnetic interference.
Product Changelog
- TFSLOT01C (2024): Enhanced mounting options for broader compatibility.
- TFSLOT01B (2022): Upgraded electronics for better performance.
- TFSLOT01A (2021): Initial prototype (not publicly released).
For full details, visit the releases.
Links to code and documentation
Documentation (docs.thunderfly.cz)
